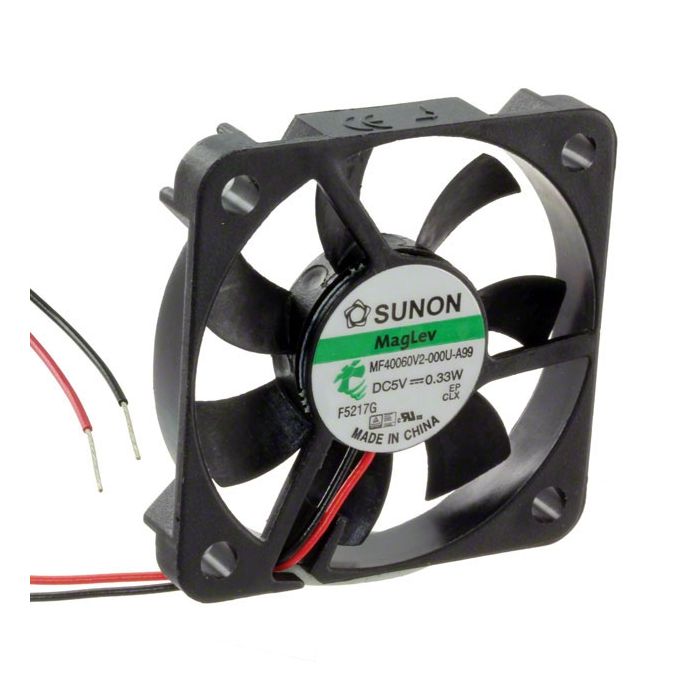

VENTILATOR 5V/DC VAPOLAGER 40X40X6MM 9.3M3/H 25.7DB
€ 13,50
€ 11,16
Artikelnummer
F0504006VC
- ArtikelnummerF0504006VC
- MerkSUNON
- Aantal 5+ € 12,15 € 10,04
Design
 |
|
| Motor: | Patented One-phase Single Coil |
| DC Brushless Motor Design | |
| Nr. of Motor Poles: | 4 |
| Frame, Impeller: | Filled Thermoplastic PBT (UL94V-0) |
| Bearing System: | Vapo |
| With Magnetic Levitation System | |
| Lead Wire: | AWG28, Stripped, Tinned |
|
|
| Technical Specifications |
|
|
| Rated Voltage: | 5V DC |
| Operating Voltage: | 2,5...5,5V DC |
| Dielectric Strength at 65% r. F.: | 500V AC for 1 Min. |
| Insulation Resistance at 500V DC : | 10MOhm |
| Storage Temperature: | -40...+70°C |
| Operating Temperature: | -10...+70°C |
|
|
| Part Nr. | URated | PAirflow | Noise | I | Pel | Speed |
| [V] | [m3/h] | [dBA] | [A] | [W] | [RPM] | |
| MF40060V2-A99 | 5 | 9,34 | 25,7 | 0,065 | 0,33 | 6000 |
| PAirflow = Airflow, Pel = Rated Power and Current Tolerance, ±15% | ||||||
