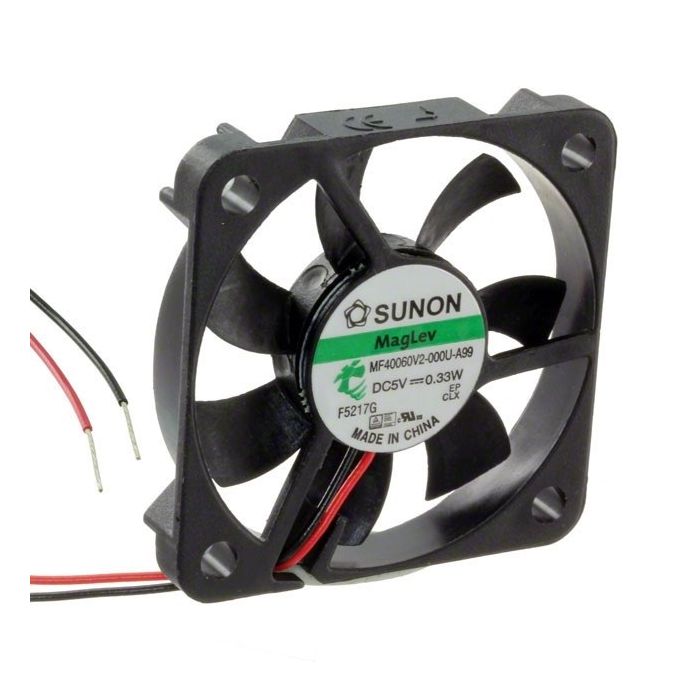

VENTILATOR 5V/DC VAPOLAGER 40X40X6MM 10.7M3/H 39.3DBA PWM
€ 21,78
€ 18,00
Artikelnummer
F0504006PA
- ArtikelnummerF0504006PA
- MerkSUNON
- Aantal 5+ € 19,60 € 16,20
 |
|
| Motor: | One-phase Single Coil DC Brushless |
| Nr. of Motor Poles: | 4 |
| Frame, Impeller: | Filled Thermoplastic PBT (UL94V-0) |
| Bearing System: | Vapo |
| With Magnetic Levitation System | |
| Lead Wire: | UL1571 AWG28, Stripped, Tinned |
|
|
| Technical Specifications |
|
|
| Rated Voltage: | 5V DC |
| Operating Voltage | |
| MF40060V11000US99: | 4,3...6V DC |
| Dielectric Strength: | 500V AC for 1 Min. |
| Insulation Resistance at 500V DC : | 10MOhm |
| Storage Temperature: | -40...+70°C |
| Operating Temperature: | -10...+70°C |
|
|
| Part Nr. | URated | PAirflow | Noise | I | Pel | Speed |
| [V] | [m3/h] | [dBA] | [A] | [W] | [RPM] | |
| MF40060V11000US99 | 5 | 10,70 | 29,3 | 0,087 | 0,44 | 7000 |
| PAirflow = Airflow, Pel = Rated Power and Current Tolerance, ±15% | ||||||
