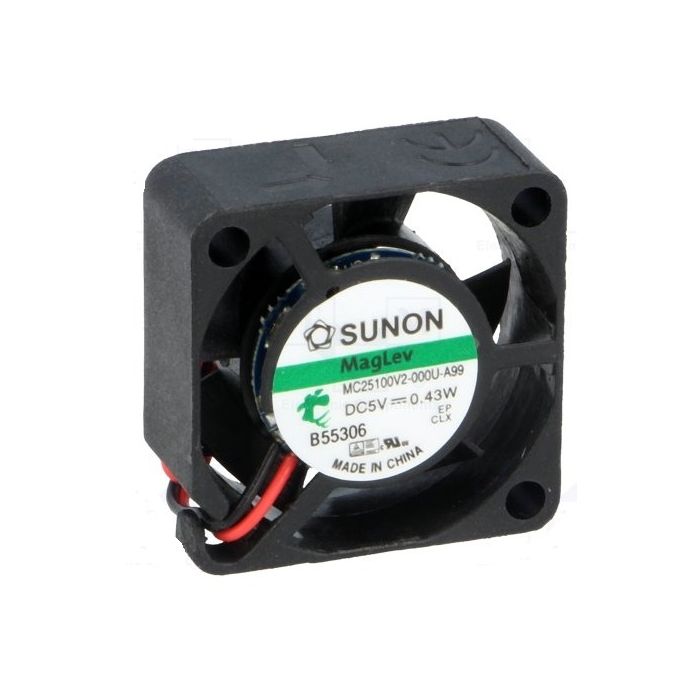

VENTILATOR 5V/DC VAPOLAGER 25X25X10MM 5,9M3/H 23DB

€ 9,98 € 8,25
Artikelnummer
F0502510VD
  • ArtikelnummerF0502510VD
  • MerkSUNON
  • Aantal 5+   € 8,98 € 7,42
Print deze pagina Print deze pagina

Design


Motor: Patented One-phase Single Coil
DC Brushless Motor Design
Nr. of Motor Poles: 8
Frame, Impeller: Filled Thermoplastic PBT (UL94V-0)
Bearing System: Vapo
With Magnetic Levitation System
Lead Wire: AWG28, Stripped, Tinned
Technical Specifications

Rated Voltage
MC25100_: 5V DC

Operating Voltage
MC25100_: 2,5...6V DC

Dielectric Strength at 65% r. F.: 500V AC for 1 Min.
Insulation Resistance at 500V DC: >500MOhm
Storage Temperature: -40...+70°C
Operating Temperature: -10...+70°C

Part Nr. URated PAirflow Noise I Pel Speed
  [V] [m3/h] [dBA] [A] [W] [RPM]

MF25100V11000UA99 5 5,94 23 0,105 0,53 13000







PAirflow = Airflow, Pel = Rated Power and Current Tolerance, ±15%
