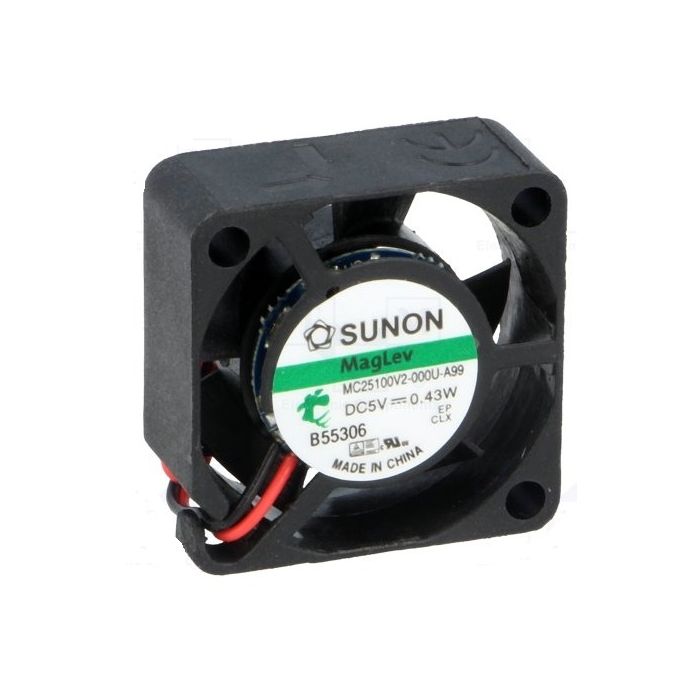

VENTILATOR 5V/DC VAPOLAGER 25X25X10MM 5,1M3/H 16DB
€ 8,65
€ 7,15
Artikelnummer
F0502510VE
- ArtikelnummerF0502510VE
- MerkSUNON
- Aantal 5+ € 7,78 € 6,43
Design
 |
|
| Motor: | Patented One-phase Single Coil |
| DC Brushless Motor Design | |
| Nr. of Motor Poles: | 8 |
| Frame, Impeller: | Filled Thermoplastic PBT (UL94V-0) |
| Bearing System: | Vapo |
| With Magnetic Levitation System | |
| Lead Wire: | AWG28, Stripped, Tinned |
|
|
| Technical Specifications |
|
|
| Rated Voltage | |
| MC25100_: | 5V DC |
| Operating Voltage | |
| MC25100_: | 2,5...6V DC |
| Dielectric Strength at 65% r. F.: | 500V AC for 1 Min. |
| Insulation Resistance at 500V DC: | >500MOhm |
| Storage Temperature: | -40...+70°C |
| Operating Temperature: | -10...+70°C |
|
|
| Part Nr. | URated | PAirflow | Noise | I | Pel | Speed |
| [V] | [m3/h] | [dBA] | [A] | [W] | [RPM] | |
| MF25100V21000UA99 | 5 | 5,09 | 16 | 0,065 | 0,33 | 9800 |
| PAirflow = Airflow, Pel = Rated Power and Current Tolerance, ±15% | ||||||
