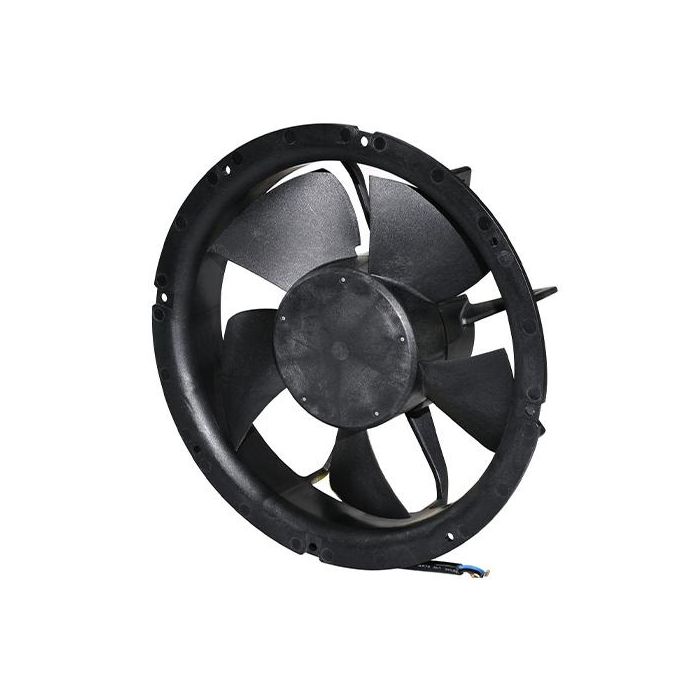

VENTILATOR 230V/AC 250X77.4MM 473M/H 41DBA IP68 KOGELLAGER
€ 135,00
€ 111,57
Artikelnummer
CF2207LBLE
- ArtikelnummerCF2207LBLE
- MerkSUNON
- Aantal 5+ € 121,50 € 100,41
Design |
Motor: | Patented One-phase Single Coil |
DC Brushless Motor Design | |
Frame: | Thermoplastic PBT (UL94V-0) |
Impeller: | Thermoplastic PBT (UL94V-0) |
Bearing System: | Ball |
IP Protection Class | |
CF2207_HE9: | IP68 |
CF2207_HB9: | IP55 |
Lead Wire: | UL SVT 18AWGx3C, 105°C, 300V |
Technical Specifications |
Rated Voltage: | 230V AC |
Operating Voltage: | 180...250V AC |
Dielectric Strength at 65% r. F.: | 1800V AC für 1s |
Insulation Resistance at 500V DC: | >10MOhm |
Storage Temperature: | -40...+70°C |
Operating Temperature: | -40...+50°C |
Part Nr. | Speed | PAirflow | Noise | I | Pel |
[RPM] | [m3/h] | [dBA] | [A] | [W] | |
CF2207LBL-000U-HE9 | 950 | 315,9 | 29,9 | 0,038 | 3,2 |
1400 | 473,5 | 41,2 | 0,07 | 6,6 | |
CF2207LBL-000U-HB9 | 950 | 315,9 | 29,9 | 0,038 | 3,2 |
1400 | 473,5 | 41,2 | 0,07 | 6,6 | |
PAirflow = Airflow, Pel = Rated Power and Current Tolerance, ±15% |
