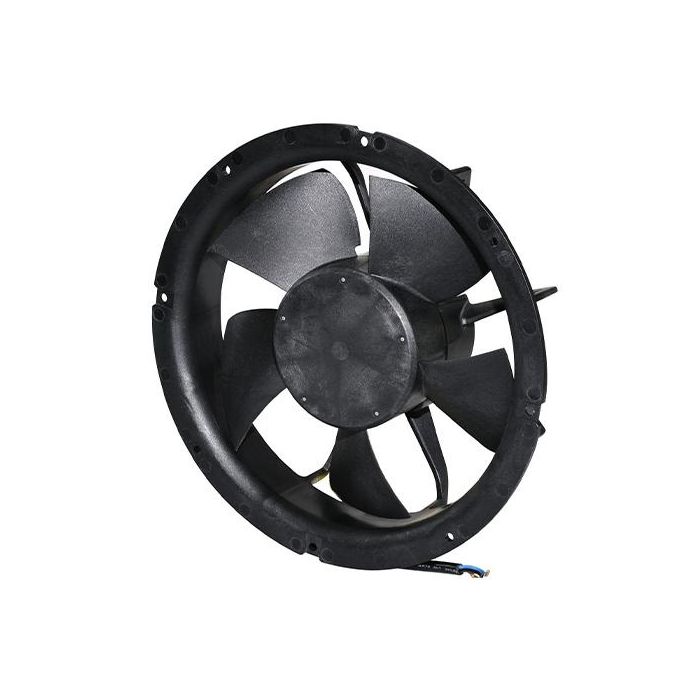

VENTILATOR 230V/AC 250X77.4MM 473M/H 41DBA IP55 KOGELLAGER
€ 119,00
€ 98,35
Artikelnummer
CF2207LBLH
- ArtikelnummerCF2207LBLH
- MerkSUNON
- Aantal 5+ € 107,10 € 88,51
| Design |
 |
|
| Motor: | Patented One-phase Single Coil |
| DC Brushless Motor Design | |
| Frame: | Thermoplastic PBT (UL94V-0) |
| Impeller: | Thermoplastic PBT (UL94V-0) |
| Bearing System: | Ball |
| IP Protection Class | |
| CF2207_HE9: | IP68 |
| CF2207_HB9: | IP55 |
| Lead Wire: | UL SVT 18AWGx3C, 105°C, 300V |
|
|
| Technical Specifications |
|
|
| Rated Voltage: | 230V AC |
| Operating Voltage: | 180...250V AC |
| Dielectric Strength at 65% r. F.: | 1800V AC für 1s |
| Insulation Resistance at 500V DC: | >10MOhm |
| Storage Temperature: | -40...+70°C |
| Operating Temperature: | -40...+50°C |
|
|
| Part Nr. | Speed | PAirflow | Noise | I | Pel |
| [RPM] | [m3/h] | [dBA] | [A] | [W] | |
| CF2207LBL-000U-HE9 | 950 | 315,9 | 29,9 | 0,038 | 3,2 |
| 1400 | 473,5 | 41,2 | 0,07 | 6,6 | |
| CF2207LBL-000U-HB9 | 950 | 315,9 | 29,9 | 0,038 | 3,2 |
| 1400 | 473,5 | 41,2 | 0,07 | 6,6 | |
| PAirflow = Airflow, Pel = Rated Power and Current Tolerance, ±15% | |||||
