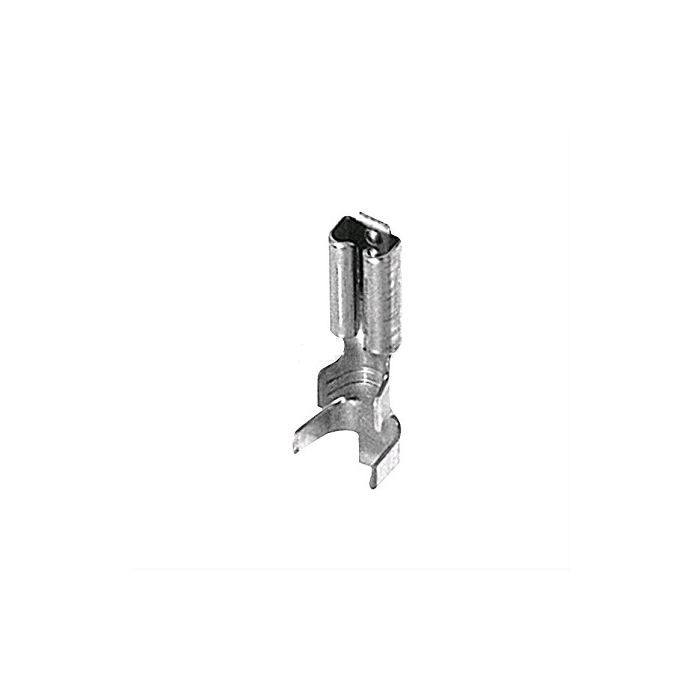

SCHUIF 2.8MM FEMALE ONGEISOLEERD 50 STUKS
€ 4,95
€ 4,09
Artikelnummer
FFG2/050
- ArtikelnummerFFG2/050
- MerkBrand
- Aantal 25+ € 4,45 € 3,68
Schuifjes 2,8x0,8 1,0mm Brass
Features
| • Flat receptacles for crimping • Made of brass or copper, some parts with red PVC sleeve |
 |
| Technical Specifications |
| Part Nr. | qRATED | Fitting to | Material/ |
| [mm2] | Plug | Surface | |
| FH28X08M1-L | 0,75...1,0 | 2,8x0,8 | CuZn/Sn |
| _RT = With Red Insulation Sleeve, qRated = Crimping Conductor Cross Section, CuZn/Sn = Brass, Tin-plated, Cu/Sn = Copper, Tin-plated | |||
|
|||
| Dimensions |
| Part Nr. | A1 | A2 | L1 | L2 | s |
| [mm] | [mm] | [mm] | [mm] | [mm] | |
| FH28X08M1-L | 5,5 | 2,5 | 14,0 | 6,3 | 0,25 |
| s = Material Strength | |||||
