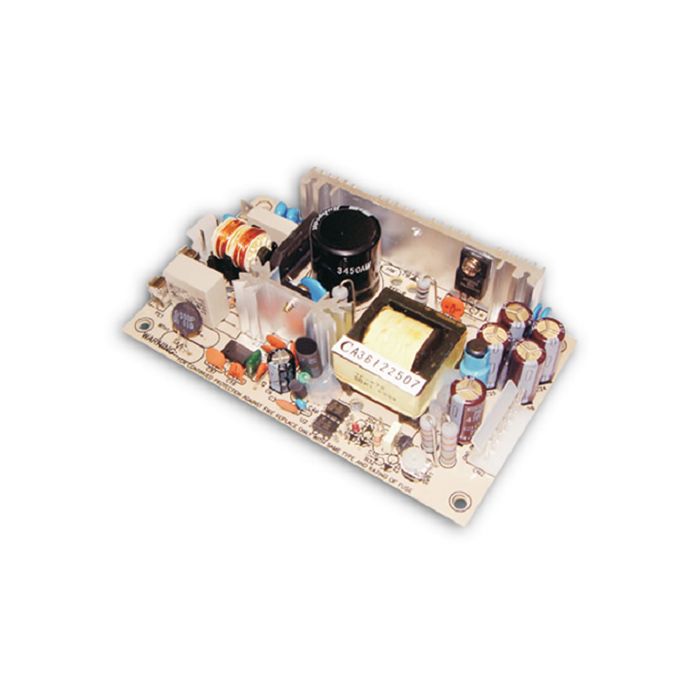

GESCHAKELDE VOEDING SINGLE OUTPUT 45W 24V/1.9A
€ 22,95
€ 18,97
Artikelnummer
PS4524
- ArtikelnummerPS4524
- MerkMEANWELL
- Aantal 3+ € 21,80 € 18,02
Universal AC input / Full range
Low leakage current <0.5mA
Protections: Short circuit/Over load /Over voltage
Cooling by free air convection
100% full load burn-in test
Fixed switching frequency at 65KHz
OUTPUT:
DC VOLTAGE: 24V
CURRENT: 1.9A
VOLTAGE TOLERANCE +/-2.0%
INPUTS
AC VOLTAGE: 90-264V
DIMENSION: 127*76*28mm (L*W*H)
Low leakage current <0.5mA
Protections: Short circuit/Over load /Over voltage
Cooling by free air convection
100% full load burn-in test
Fixed switching frequency at 65KHz
OUTPUT:
DC VOLTAGE: 24V
CURRENT: 1.9A
VOLTAGE TOLERANCE +/-2.0%
INPUTS
AC VOLTAGE: 90-264V
DIMENSION: 127*76*28mm (L*W*H)
