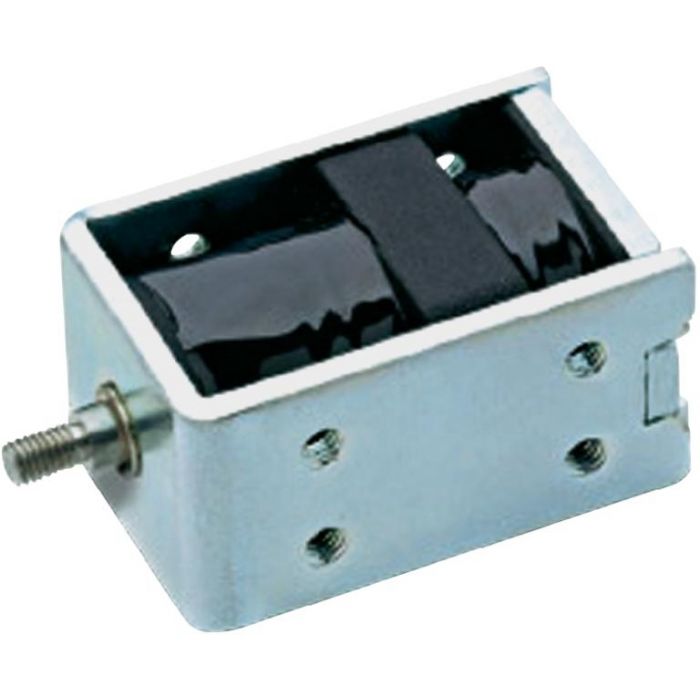

SOLENOID BISTABIEL 24VDC/1.5A 0,4KG
€ 52,95
€ 43,76
Artikelnummer
LX2218-24
- ArtikelnummerLX2218-24
- MerkRED-MAGNETICS
- Aantal 5+ € 47,65 € 39,38
Features
Bistable solenoid
Stroke length of 6mm
Lower weight by open frame design
Stable in the end positions
Forcibly guided ram
Electrical connection : stranded wire 100+10mm
Mechanical connection (thread see also data sheet):
ITS-LX-2218_: M3 (4x)
Voltage: 24Vdc
Current: 1.5A
Power at 100%ED: 36W
Typical Force: 4N
Dimensions: 22x18x30mm
Weight Solenoid: 71gr.
Bistable solenoid
Stroke length of 6mm
Lower weight by open frame design
Stable in the end positions
Forcibly guided ram
Electrical connection : stranded wire 100+10mm
Mechanical connection (thread see also data sheet):
ITS-LX-2218_: M3 (4x)
Voltage: 24Vdc
Current: 1.5A
Power at 100%ED: 36W
Typical Force: 4N
Dimensions: 22x18x30mm
Weight Solenoid: 71gr.
