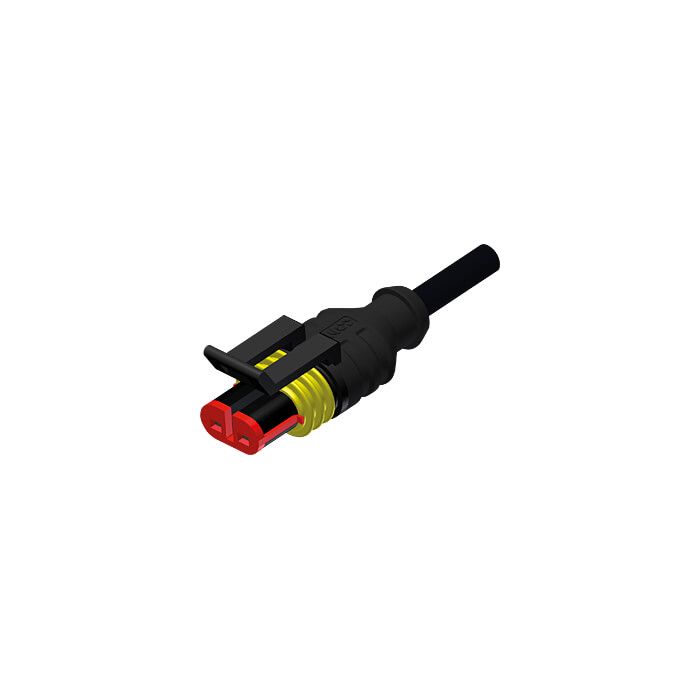

KABEL 2P FEMALE 2M 0.75MM2 IP67
€ 14,96
€ 12,36
Artikelnummer
SSK2PF0/2
- ArtikelnummerSSK2PF0/2
- MerkCONEC
- Aantal 10+ € 13,46 € 11,12
Features
| • Valve connector VSS molded with connecting cable • VSS_SAK_: plug connector • VSS_PAK_: cap connector |
 |
| Technical Specifications |
|
|
| Max. Rated Voltage: | 24V DC |
| Rating Current: | 8A @80°C |
| Mating Cicles: | 50 |
| Wire Cross Section: | 0,75mm2 |
| Min. Insulation Resistance: | 100 MOhm |
| Cable Quality: | Li9Y11Y |
| Degree of Protection*: | IP67 |
| Housing: | Superseal 1.5, black |
| Materials | |
| Contact: | Cooper alloy |
| Insulator: | PA GF (UL 94 V-0), black |
| Contact Plating: | Tin over Nickel |
| Overmolding: | TPU, UL 94, black |
| Sealing: | Silicone |
| Temperature Range | |
| Connector: | -40...+125°C |
| Wire Fixed: | -40...+80°C |
| Wire Moved: | -25...+80°C |
