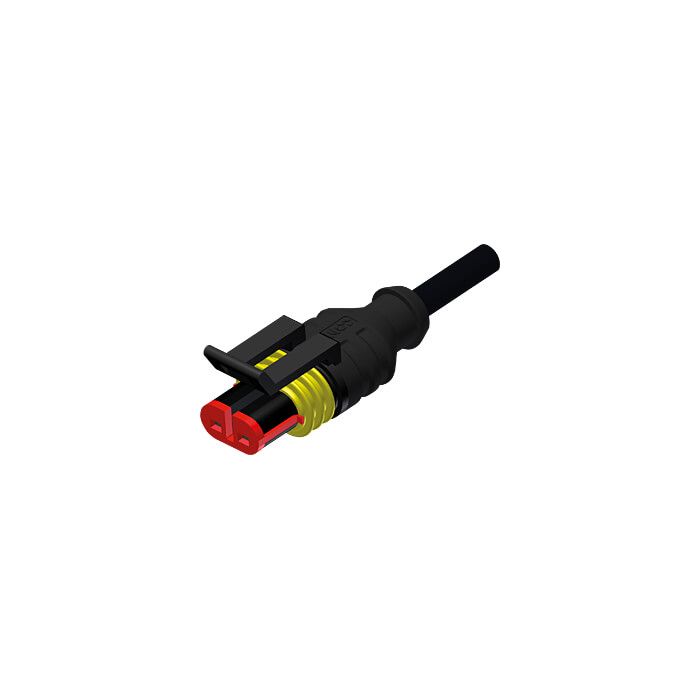

KABEL 2P FEMALE 10M 0.75MM2 IP67
€ 32,95
€ 27,23
Artikelnummer
SSK2PF0/10
- ArtikelnummerSSK2PF0/10
- MerkCONEC
- Aantal 10+ € 29,65 € 24,50
Features
• Valve connector VSS molded with connecting cable • VSS_SAK_: plug connector • VSS_PAK_: cap connector |
Technical Specifications |
Max. Rated Voltage: | 24V DC |
Rating Current: | 8A @80°C |
Mating Cicles: | 50 |
Wire Cross Section: | 0,75mm2 |
Min. Insulation Resistance: | 100 MOhm |
Cable Quality: | Li9Y11Y |
Degree of Protection*: | IP67 |
Housing: | Superseal 1.5, black |
Materials | |
Contact: | Cooper alloy |
Insulator: | PA GF (UL 94 V-0), black |
Contact Plating: | Tin over Nickel |
Overmolding: | TPU, UL 94, black |
Sealing: | Silicone |
Temperature Range | |
Connector: | -40...+125°C |
Wire Fixed: | -40...+80°C |
Wire Moved: | -25...+80°C |
