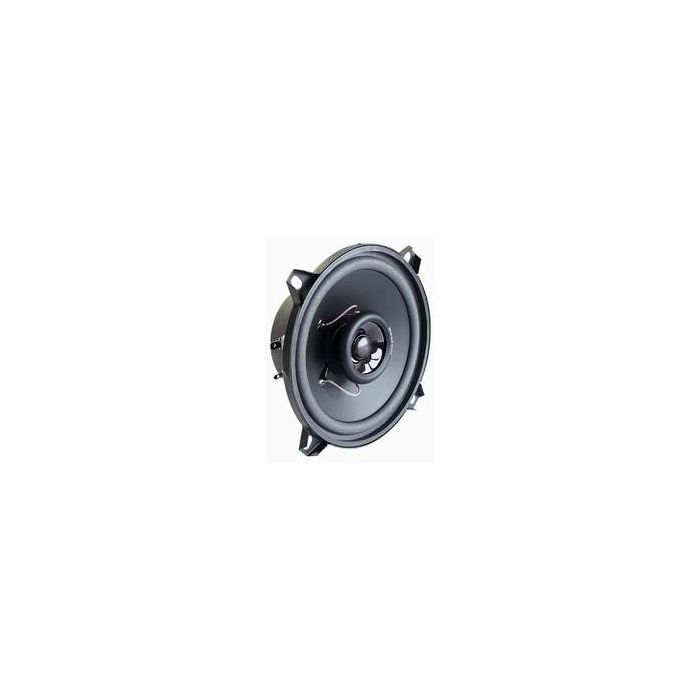

SPEAKER BREEDBAND 4 OHM 60/80W 70-20000HZ 86DB 130MM PER PAAR
€ 79,50
€ 65,70
Artikelnummer
DX13
- ArtikelnummerDX13
- MerkVISATON
- Aantal 4+ € 75,52 € 62,41
power 60 W
Maximum power 80 W
Nominal impedance Z 4 Ohm
Frequency response 7020000 Hz
Mean sound pressure level 86 dB (1 W/1 m)
Opening angle (-6 dB) 180°/4000 Hz
Excursion limit +/−2,5 mm
Resonance frequency fs 90 Hz
Magnetic induction 1,1 T
Magnetic flux 345 µWb
Height of front pole-plate 4 mm
Voice coil diameter 25 mm/14 mm
Height of winding 7 mm
Cutout diameter 116 mm
Net weight 0,69 kg
D.C. resistance Rdc 3,3 Ohm
Mechanical Q factor Qms 8,51
Electrical Q factor Qes 1,07
Total Q factor Qts 0,95
Effective piston area Sd 88 cm²
Inductance of the voice coil L 0,39 mH
Temperature range −25 ... 70 °C
Maximum power 80 W
Nominal impedance Z 4 Ohm
Frequency response 7020000 Hz
Mean sound pressure level 86 dB (1 W/1 m)
Opening angle (-6 dB) 180°/4000 Hz
Excursion limit +/−2,5 mm
Resonance frequency fs 90 Hz
Magnetic induction 1,1 T
Magnetic flux 345 µWb
Height of front pole-plate 4 mm
Voice coil diameter 25 mm/14 mm
Height of winding 7 mm
Cutout diameter 116 mm
Net weight 0,69 kg
D.C. resistance Rdc 3,3 Ohm
Mechanical Q factor Qms 8,51
Electrical Q factor Qes 1,07
Total Q factor Qts 0,95
Effective piston area Sd 88 cm²
Inductance of the voice coil L 0,39 mH
Temperature range −25 ... 70 °C
