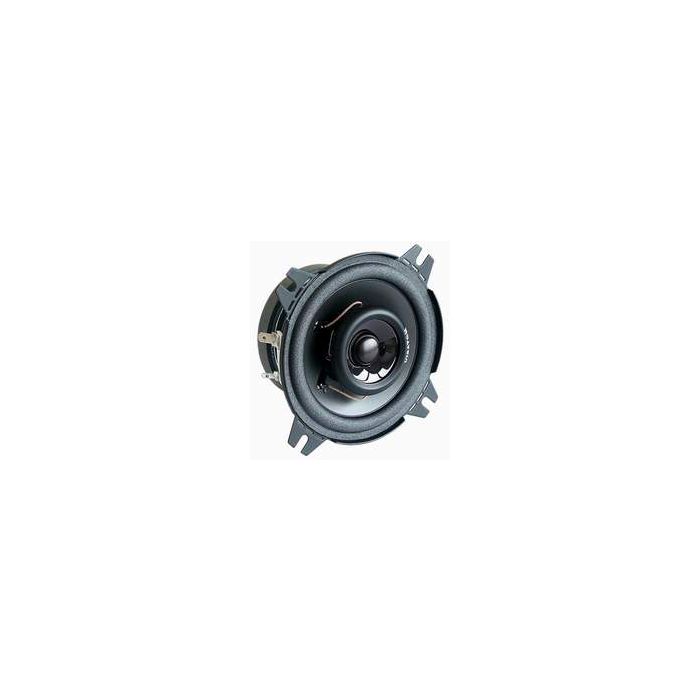

SPEAKER BREEDBAND 4 OHM 50/70W 80-20000HZ 88DB 100MM PER PAAR
€ 71,95
€ 59,46
Artikelnummer
DX10
- ArtikelnummerDX10
- MerkVISATON
- Aantal 4+ € 68,34 € 56,48
Rated power 50 W
Maximum power 70 W
Nominal impedance Z 4 Ohm
Frequency response 8020000 Hz
Mean sound pressure level 88 dB (1 W/1 m)
Opening angle (-6 dB) 98°/4000 Hz
Excursion limit +/−3 mm
Resonance frequency fs 110 Hz
Magnetic induction 1 T
Magnetic flux 310 µWb
Height of front pole-plate 4 mm
Voice coil diameter 25 mm/14 mm
Height of winding 6 mm
Cutout diameter 91 mm
Net weight 0,64 kg
D.C. resistance Rdc 3,6 Ohm
Mechanical Q factor Qms 8,17
Electrical Q factor Qes 0,92
Total Q factor Qts 0,83
Effective piston area Sd 50 cm²
Inductance of the voice coil L 0,37 mH
Temperature range −25 ... 70 °C
Maximum power 70 W
Nominal impedance Z 4 Ohm
Frequency response 8020000 Hz
Mean sound pressure level 88 dB (1 W/1 m)
Opening angle (-6 dB) 98°/4000 Hz
Excursion limit +/−3 mm
Resonance frequency fs 110 Hz
Magnetic induction 1 T
Magnetic flux 310 µWb
Height of front pole-plate 4 mm
Voice coil diameter 25 mm/14 mm
Height of winding 6 mm
Cutout diameter 91 mm
Net weight 0,64 kg
D.C. resistance Rdc 3,6 Ohm
Mechanical Q factor Qms 8,17
Electrical Q factor Qes 0,92
Total Q factor Qts 0,83
Effective piston area Sd 50 cm²
Inductance of the voice coil L 0,37 mH
Temperature range −25 ... 70 °C
