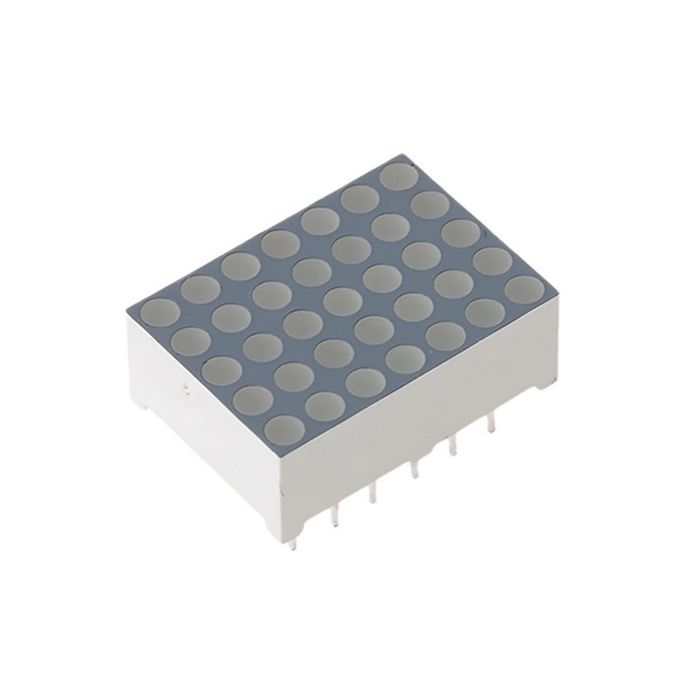

DOTMATRIX GROEN 18MM CA 900MCD
€ 3,94
€ 3,26
Artikelnummer
DM18AG
- ArtikelnummerDM18AG
- MerkKINGBRIGHT
- Aantal 5+ € 3,55 € 2,93
| Kenmerk | Waarde |
| Display Type | Dot Matrix |
| LED Colours | Green |
| Dominant Wavelength | 568 nm |
| Character Width | 12.5mm |
| Character Height | 17.2mm |
| Common Connection | Anode |
| Mounting Type | Through Hole |
| External Width | 12.7mm |
| External Depth | 6.4mm |
| External Dimensions | 17.8 x 12.7 x 6.4mm |
| External Height | 17.8mm |
| Luminous Intensity | 12 mcd |
| Colour of Face | Grey |
| Power Dissipation | 62.5mW |
| Minimum Operating Temperature | -40°C |
| Dots Wide | 5 |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -40 → +85°C |
| Dot Matrix Dimensions | 7 x 5 |
| Series | TA07 |
| Dot Matrix Format | 5 x 7 |
| Forward Current | 25mA |
| Dots High | 7 |
| Forward Voltage | 2.2 V |
