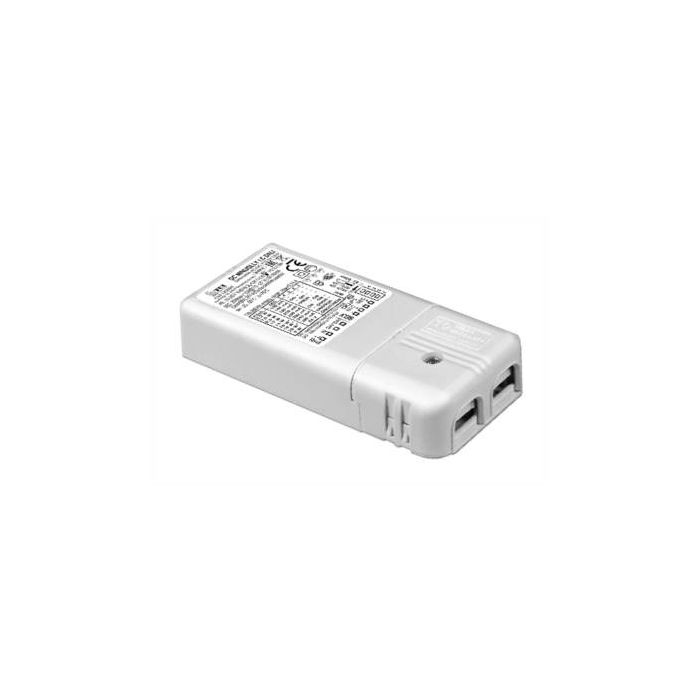

DC MINI JOLLY LED DRIVER 3-50VDC 100-380MA 19W 110X52X22MM

Features
• Multipower driver supplied with dip-switch for the selection
of the output current.
• IP20 independent driver, for indoor use (DC MINI JOLLY LC
DALI).
• Class II protection against electric shock for direct or indirect
contact (DC MINI JOLLY LC DALI).
• Driver for built-in use (DC MINI JOLLY LC DALI BI).
• It can be used for lighting equipment in protection class I and II
(DC MINI JOLLY LC DALI BI).
• Active Power Factor Corrector.
• Current regulation ±5 % including temperature variations.
• Input and output terminal blocks on the same side
(wire cross-section up to 1,5 mm2 / AWG15).
• Clamping screws on primary and secondary circuits for cables
with diameter: PRI 3-8 mm / SEC 3-5 mm (DC MINI JOLLY LC
DALI).
• Protections:
- against overheating and short circuits;
- against mains voltage spikes;
- against overloads.
• Thermal protection = C.5.e.
• Double output impedance for use in household electrical
appliances.
