ANTENNE BASIS 27MHZ 5/8 3.45DBI

Name: ANTENNE BASIS 27MHZ 5/8 3.45DBI
SKU: 2016
Price: 199.95 EUR
Availability: InStock

€ 199,95 € 165,25

Artikelnummer

2016

Sirio - 2016

Toon meer Toon minder

Artikelnummer2016
MerkSIRIO

Aantal 5+ € 189,95 € 156,98

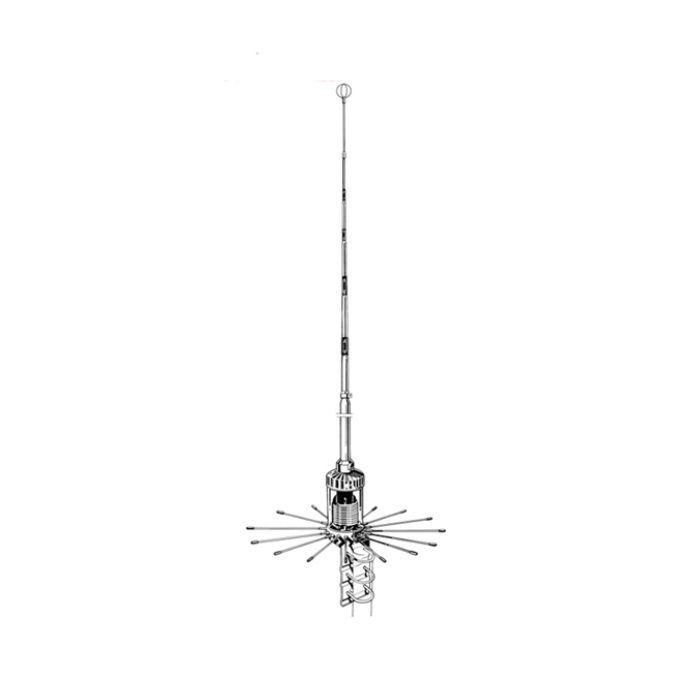

High power 5/8 CB base station antenna with transparant coil cover. Available in two versions: Sirio 2008 with 8 radials or Sirio 2016 with 16 radials.

Picture may differ from original product (number of radials).

Frequency range: 26.4 - 28.2 MHz tunable

Electrical data

Electrical type: 5/8 λ ground plane
Gain: 1.3 dBd, 3.45 dBi
VSWR: ≤ 1.1
Bandwidth: 2100 kHz ≤ 2.0
Maximum continuous power: 1000 Watts (CW)
Power peak: 3000 Watts (CW)
Impedance: 50 Ohm
Polarization: Linear vertical
Feed system: Transformer DC-ground / base

Mechanical data

Materials: Aluminium, copper, brass, galvanized steel, nylon
Mast Ø: 40 - 50 mm
Max wind resistance: 130 km/h
Height: 6100 mm
Weight: 5300 gram
Mounting type: On mast
Antenna connector: UHF-female
Radial length: 700 mm

ANTENNE BASIS 27MHZ 5/8 3.45DBI

Sirio - 2016

Electrical data

Mechanical data
