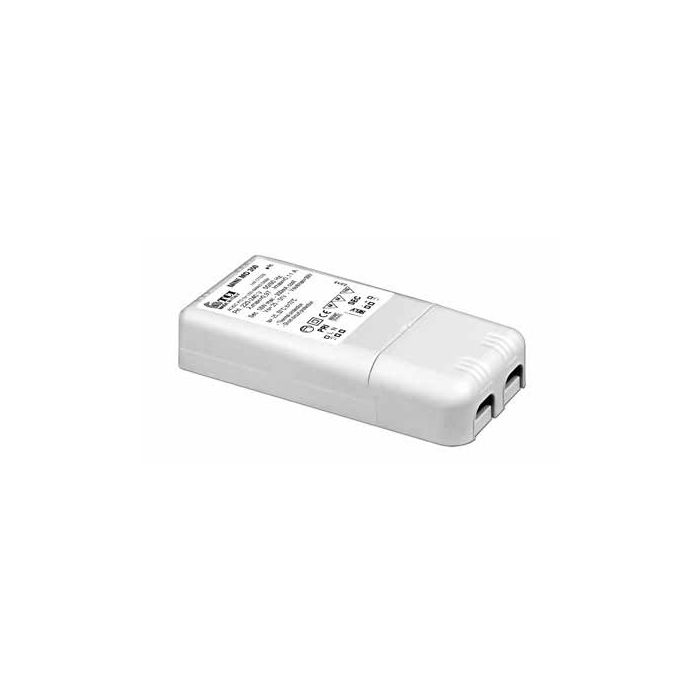

MINI MD LED DRIVER 16-28VDC 700MA 20W DIMBAAR

Features
• IP20 independent driver, for indoor use (MINI MD).
• Class II protection against electric shock for direct or indirect
contact (MINI MD).
• Driver for built-in use (MINI MD BI).
• It can be used for lighting equipment in protection class I and II
(MINI MD BI).
• Active Power Factor Corrector.
• Current regulation ±8 % including temperature variations.
• Supplied with terminal cover and cable retainer (MINI MD).
• Input and output terminal blocks on the same side (wire
cross-section up to 1,5 mm2 / AWG15).
• Clamping screws on primary and secondary circuits for cables
with diameter: min. 3 mm - max. 8 mm (MINI MD).
• Driver can be secured with slot for screws.
• Protections:
- against overheating and short circuits;
- against mains voltage spikes;
- against overloads.
• Thermal protection = C.5.a.
