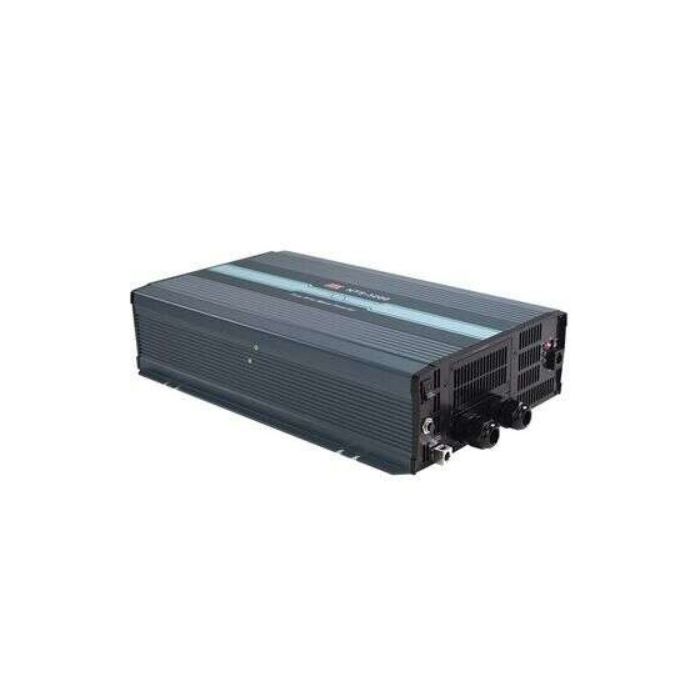

ZUIVERE SINUS OMVORMER 48VDC-230VAC 3200W

MEANWELL
Artikelnummer: NTS3200-48
Uw prijs:
€ 957,85 Excl. BTW:
€ 1.159,00 Incl. BTW:
- +

Extra informatie

print

Features

• Enclosed design
• Pure sine wave output (THD<3%)
• Peak power up to 6400W
• Adjustable output voltage
• Remote function
• Shutdown when battery is too low
• Alarm function in case of low battery voltage
• Protections: short circuit, overvoltage and overtemperature
• Safety standards: IEC 62368-1; EN 62368-1
• EMC standards: EN55032 Class A
• 3 years manufacturer's warranty
Technical Specifications

Output voltage, selectable: 200/220/230/240V AC
Output voltage tolerance: ±3%
Output frequency: 50/60Hz
Output frequency tolerance: ±0,1Hz
Output power: 3200W
Waveform: Echt-Sinus
Connection type: EU Typ F
Operating temperature range -25...+70°C
Insulation voltage I/P-O/P: 3000 V AC
Insulation voltage O/P-FG: 1500 V AC
Dimensions: 420x270x98mm
Weight: 8600g

Part No UNenn UE IE ƞ
  [V] [V] [A] [%]
NTS-3200-212EU 12 10...16,5 320 90
NTS-3200-224EU 24 20...33 160 92
NTS-3200-248EU 48 40...66 80 93
UNenn= Nominal input voltage, UE = Input voltage range, IE = Input current, ƞ = Efficiency
