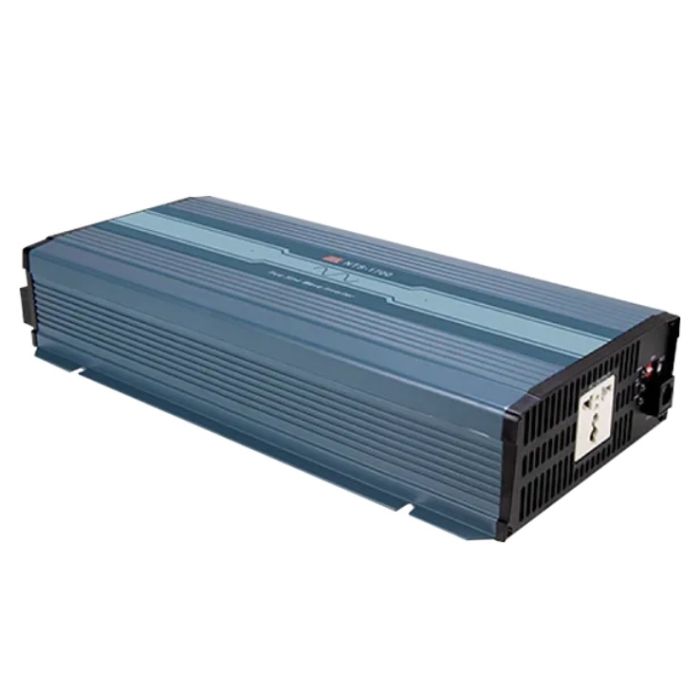

ZUIVERE SINUS OMVORMER 48VDC-230VAC 1700W
€ 599,00
€ 495,04
Artikelnummer
NTS1700-48
- ArtikelnummerNTS1700-48
- MerkMEANWELL
- Aantal 2+ € 539,09 € 445,53
Features
• Enclosed design • True sine wave output (THD <3%) • Peak power up to 2550W • Adjustable output voltage • Remote function • Shutdown when battery is too low • Alarm function in case of low battery voltage • Protections: short circuit, overvoltage and overtemperature • Safety standards: IEC 62368-1; EN 62368-1 • EMC standards: EN55032 Class A • 3 years manufacturer's warranty |
Technical Specifications |
Output voltage, selectable: | 200/220/230/240V AC |
Output voltage tolerance: | ±3% |
Output frequency: | 50/60Hz |
Output frequency tolerance: | +- 1Hz |
Output power: | 1700W |
Waveform: | Echt-Sinus |
Connection type: | EU Typ F |
Operating temperature range | -25...+70°C |
Insulation voltage I/P-O/P: | 3000 V AC |
Insulation voltage O/P-FG: | 1500 V AC |
Dimensions: | 400x184x70mm |
Weight: | 4630g |
Part No. | UNenn | UE | IE | ƞ |
[V] | [V] | [A] | [%] | |
NTS-1700-212EU | 12 | 10...16,5 | 170 | 89 |
NTS-1700-224EU | 24 | 20...33 | 85 | 92 |
NTS-1700-248EU | 48 | 40...66 | 42,5 | 93 |
UNenn= Nominal input voltage, UE = Input voltage range, IE = Input current, ƞ = Efficiency |
