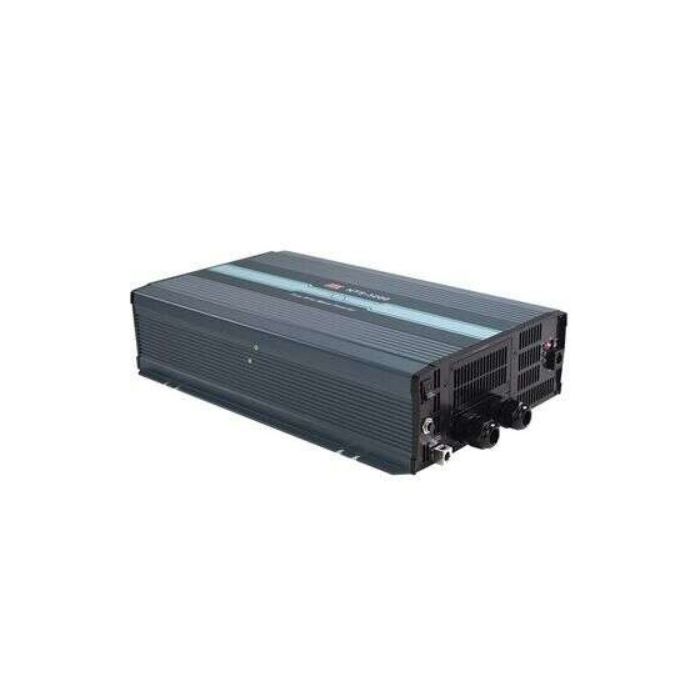

ZUIVERE SINUS OMVORMER 24VDC-230VAC 3200W
€ 1.159,00
€ 957,85
Artikelnummer
NTS3200-24
- ArtikelnummerNTS3200-24
- MerkMEANWELL
- Aantal 2+ € 1.043,09 € 862,06
Features
• Enclosed design • Pure sine wave output (THD<3%) • Peak power up to 6400W • Adjustable output voltage • Remote function • Shutdown when battery is too low • Alarm function in case of low battery voltage • Protections: short circuit, overvoltage and overtemperature • Safety standards: IEC 62368-1; EN 62368-1 • EMC standards: EN55032 Class A • 3 years manufacturer's warranty |
Technical Specifications |
Output voltage, selectable: | 200/220/230/240V AC |
Output voltage tolerance: | ±3% |
Output frequency: | 50/60Hz |
Output frequency tolerance: | ±0,1Hz |
Output power: | 3200W |
Waveform: | Echt-Sinus |
Connection type: | EU Typ F |
Operating temperature range | -25...+70°C |
Insulation voltage I/P-O/P: | 3000 V AC |
Insulation voltage O/P-FG: | 1500 V AC |
Dimensions: | 420x270x98mm |
Weight: | 8600g |
Part No | UNenn | UE | IE | ƞ |
[V] | [V] | [A] | [%] | |
NTS-3200-212EU | 12 | 10...16,5 | 320 | 90 |
NTS-3200-224EU | 24 | 20...33 | 160 | 92 |
NTS-3200-248EU | 48 | 40...66 | 80 | 93 |
UNenn= Nominal input voltage, UE = Input voltage range, IE = Input current, ƞ = Efficiency |
