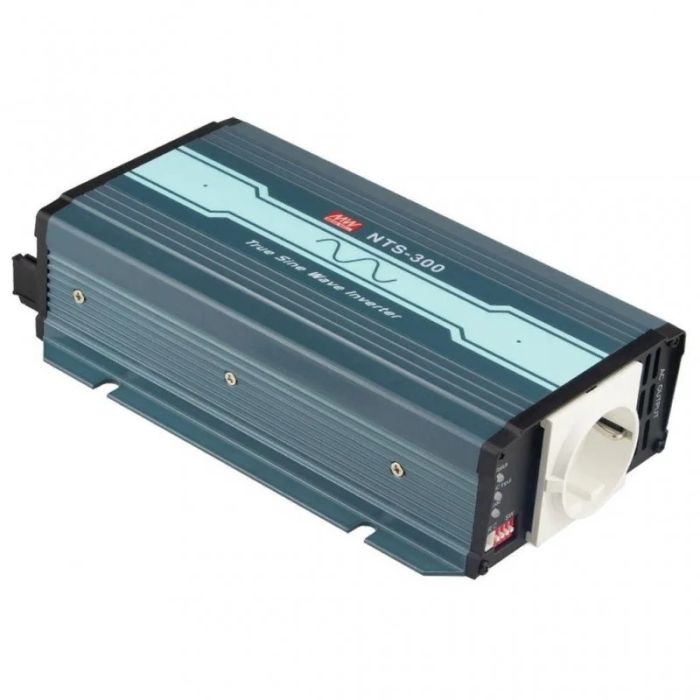

ZUIVERE SINUS OMVORMER 24VDC-230VAC 300W
€ 179,00
€ 147,93
Artikelnummer
NTS300-224
- ArtikelnummerNTS300-224
- MerkMEANWELL
- Aantal 2+ € 161,09 € 133,13
Features
| • Enclosed design • True sine wave output (THD<3%) • Peak power up to 600W •Adjustable output voltage • Remote function • Shutdown when battery is too low • Alarm function in case of low battery voltage • Protected against short circuit, overvoltage and overtemperature • Safety standards: IEC 62368-1 • EMC standards: EN55032 Class A • 3 years manufacturer's warranty |
 |
| Technical Specifications |
|
|
| Output voltage, selectable: | 200/220/230/240V AC |
| Output voltage tolerance: | ±3% |
| Output frequency: | 50/60Hz |
| Output frequency tolerance: | ±0,1% |
| Output power: | 300W |
| Waveform: | True Sine Wave, |
| Connection type: | EU Typ F |
| Operating temperature range | -20...+70°C |
| Insulation voltage I/P-O/P: | 3000 V AC |
| Insulation voltage O/P-FG: | 1500 V AC |
| Dimensions: | 210x130x55mm |
| Weight: | 1300g |
|
|
| Part No | Nominal input voltage | UE | IE | h |
| [V] | [V] | [A] | [%] | |
| NTS-300-212EU | 12 | 10...16,5 | 30 | 92 |
| NTS-300-224EU | 24 | 20...33 | 15 | 93 |
| NTS-300-248EU | 48 | 40...66 | 8 | 93 |
| UE = Input voltage range, IE = Input current, h = Efficiency | ||||
