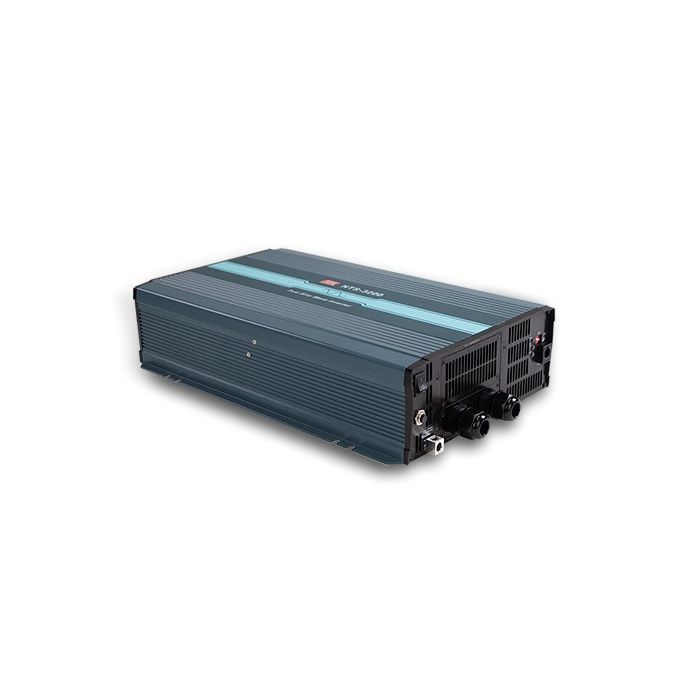

ZUIVERE SINUS OMVORMER 12VDC-230VAC 2000W
€ 899,01
€ 742,98
Artikelnummer
NTS2200-12
- ArtikelnummerNTS2200-12
- MerkMEANWELL
- Aantal 2+ € 809,10 € 668,68
Features
| • Enclosed design • Pure sine wave output (THD<3%) • Peak power up to 4400W • Adjustable output voltage • Remote function • Shutdown when battery is too low • Alarm function in case of low battery voltage • Protections: short circuit, overvoltage and overtemperature • Safety standards: IEC 62368-1; EN 62368-1 • EMC standards: EN55032 Class A • 3 years manufacturer's warranty |
 |
| Technical Specifications |
|
|
| Output voltage, selectable: | 200/220/230/240V AC |
| Output voltage tolerance: | ±3% |
| Output frequency: | 50/60Hz |
| Output frequency tolerance: | ±0,1Hz |
| Output power: | 2200W |
| Waveform: | Echt-Sinus |
| Connection type: | EU Typ F |
| Operating temperature range | -25...+70°C |
| Insulation voltage I/P-O/P: | 3000 V AC |
| Insulation voltage O/P-FG: | 1500 V AC |
| Dimensions: | 420x270x98mm |
| Weight: | 8600g |
|
|
| Part No | UNenn | UE | IE | ƞ |
| [V] | [V] | [A] | [%] | |
| NTS-2200-212EU | 12 | 10...16,5 | 250 | 90 |
| NTS-2200-224EU | 24 | 20...33 | 120 | 92 |
| NTS-2200-248EU | 48 | 40...66 | 60 | 93 |
| UNenn= Nominal input voltage, UE = Input voltage range, IE = Input current, ƞ = Efficiency | ||||
