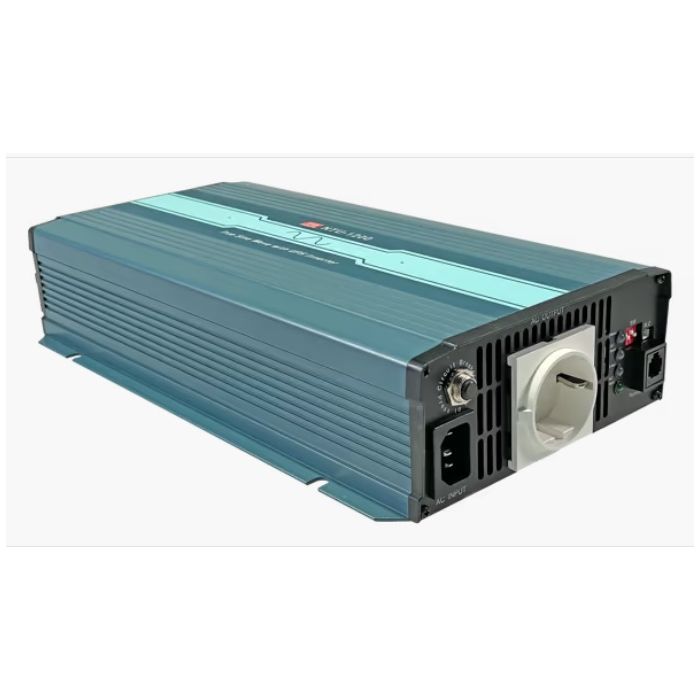

ZUIVERE SINUS OMVORMER 12VDC-230VAC 1200W MET UPS FUNKTIE

MEANWELL
Artikelnummer: NTU1200-12
Uw prijs:
€ 351,23 Excl. BTW:
€ 424,99 Incl. BTW:
- +

Extra informatie

print
Features
• Enclosed design
• True sine wave output (THD<3%)
• Built-in UPS function
• Peak power up to 2000W
• Adjustable output voltage
• Remote function
• AC-Bypass
• Shutdown when battery is too low
• Alarm function in case of low battery voltage
• Protections: short circuit, overvoltage and overtemperature
• Safety standards: IEC 62368-1; EN 62368-1
• EMC standards: EN55032 Class A
• 3 years manufacturer's warranty
Technical Specifications

Output voltage, selectable: 200/220/230/240V AC
Output voltage tolerance: ±3%
Output frequency: 50/60Hz
Output frequency tolerance: ±0,1%
Output power: 1200W
Waveform: True Sine Wave, THD <3%
Connection type: EU Typ F
Operating temperature range -25...+70°C
Insulation voltage I/P-O/P: 3000 V AC
Insulation voltage O/P-FG: 1500 V AC
Dimensions: 333x184x70mm
Weight: 3300g

Part No Nominal input voltage UE IE h
  [V] [V] [A] [%]
NTU-1200-212EU 12 10...16,5 120 90
NTU-1200-224EU 24 20...33 60 92
NTU-1200-248EU 48 40...66 30 93
UE = Input voltage range, IE = Input current, h = Efficiency
