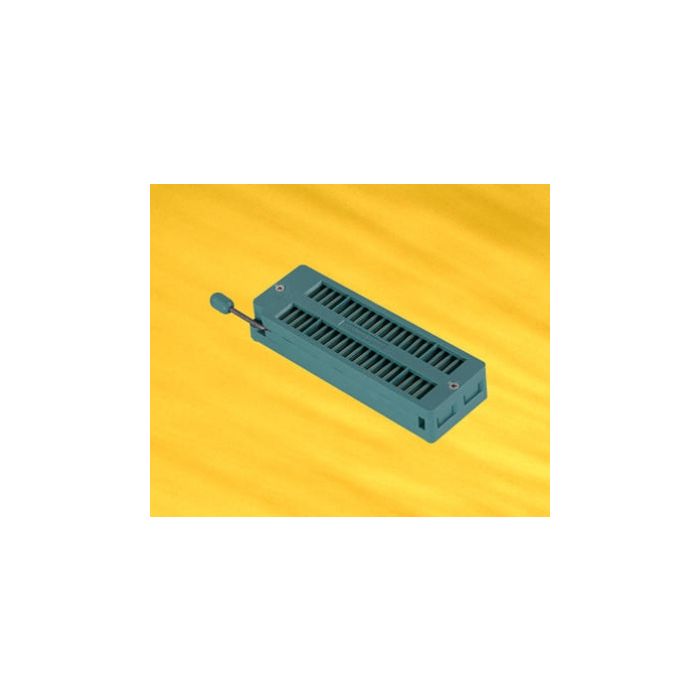

TEXTOOL 24P MET HEFBOOM

Color Green
Contact Material BeCu
Contact Termination Area Plating 30 µ\" [0.76 µm] Gold
Contact Underplating 50 µ\" [1.27 µm] Nickel
Current Rating 1 Ampere
Enclosure Material Polypropylene
Height 11.6 Millimetre
Insulation Flammability Rating UL 94V-0
Insulation Resistance >1 X 109 Ohms @ 500 Vdc
Length 45.0 Millimetre
Markings 3M Logo, Part Identification Number
Number of Contacts 24
Operating Temperature Range -55 to 150 Degree Celsius
Pitch 2.54 Millimetre
Width 22.9 Millimetre
Withstanding Voltage 1000 Vrms at Sea Level
