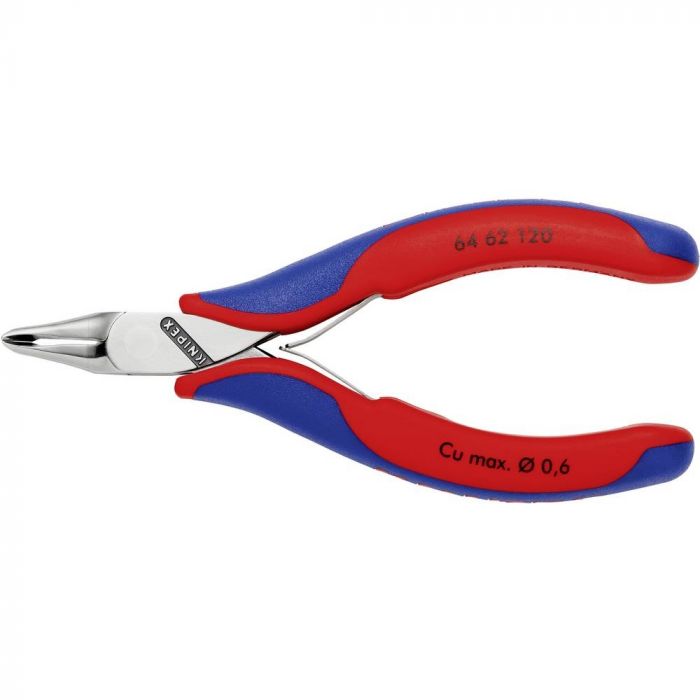

ZIJKNIPTANG 120MM 0,6MM
€ 51,75
€ 42,77
Artikelnummer
KNIP6462
- ArtikelnummerKNIP6462
- MerkKNIPEX
- Aantal 3+ € 49,16 € 40,63
Features
| • Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics • Low-friction double spring for gentle and even opening • Cutting edges additionally induction-hardened • Sturdy, zero backlash box joint • Handles with multi-component grips • Mirror polish together with a fine film of oil offers effective rust protection • Made of special tool steel, forged, multi stage oil-hardened |
 |
| Cutting parameters |
| Part No. | Hardness | Hard Wire Ø | Medium Hard Wire Ø | Soft Wire Ø |
| [HRC] | [mm] | [mm] | [mm] | |
| KNIP6412-115 | 56 | - | 0,8 | 1,4 |
| KNIP6442-115 | 56 | 0,5 | 1 | 1,5 |
| KNIP6402-115 | 56 | 0,6 | 1 | 2 |
| KNIP6462-120 | 56 | - | - | 0,6 |
|
||||
| Dimensions and Weight |
| Part No. | L x W x H | Weight |
| [mm] | [g] | |
| KNIP6412-115 | 115 x 70 x 17 | 70 |
| KNIP6442-115 | 115 x 68 x 17 | 70 |
| KNIP6402-115 | 115 x 62 x 17 | 70 |
| KNIP6462-120 | 120 x 67 x 17 | 70 |
|
||
| Surface and Type |
| Part No. | Head | Type |
| KNIP6412-115 | Mirror polished | With small bevel |
| KNIP6442-115 | Mirror polished | Short Head, with small bevel, α=27° |
| KNIP6402-115 | Mirror polished | With small bevel |
| KNIP6462-120 | Mirror polished | Mini-blade with small bevel, α=65° |
|
||
| Norms |
| DIN ISO 9654 |
