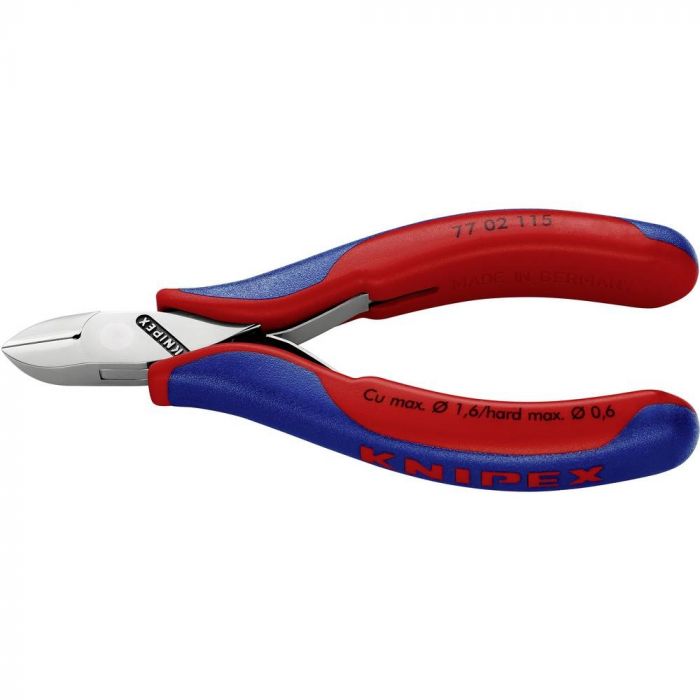

ZIJKNIPTANG 115MM 0,3-1,6MM ROND
€ 40,66
€ 33,60
Artikelnummer
KNIP7702
- ArtikelnummerKNIP7702
- MerkKNIPEX
- Aantal 3+ € 38,62 € 31,92
Features
| • Suitable for fine cutting work in electronics and fine mechanics • Precision shaped tips also cut close sitting wire from 0,2mm • Sturdy, through-put and zero-backlash box joint • Handles with multi-component grips • Made of special tool steel • KNIP7622-125: Lap joint; made of Vanadium electric steel • KNIP7742-130 made of ball bearing chrome steel |
 |
| Cutting parameters |
| Part No. | Hardness | Hard Wire Ø | Medium Hard Wire Ø | Soft Wire Ø |
| [HRC] | [mm] | [mm] | [mm] | |
| KNIP7722-115 | 57 | - | 1 | 0,3...1,3 |
| KNIP7702-115 | 60 | 0,6 | 1,2 | 0,3...1,6 |
| KNIP7742-115 | 57 | - | 0,8 | 0,3...1,3 |
| KNIP7772-115 | 60 | - | - | 0,3...0,8 |
| KNIP7622-125 | 63 | - | - | 0,4...2,5 |
| KNIP7742-130 | 60 | - | 1,3 | 0,3...1,6 |
|
||||
| Dimensions and Weight |
| Part No. | L x W x H | Weight |
| [mm] | [g] | |
| KNIP7722-115 | 115 x 45 x 17 | 76 |
| KNIP7702-115 | 115 x 71 x 48 | 76 |
| KNIP7742-115 | 115 x 71 x 48 | 75 |
| KNIP7772-115 | 115 x 50 x 17 | 74 |
| KNIP7622-125 | 125 x 57 x 19 | 107 |
| KNIP7742-130 | 130 x 61 x 18 | 122 |
|
||
| Surface and Type |
| Part No. | Head | Type |
| KNIP7722-115 | Mirror polished | Round head, without bevel |
| KNIP7702-115 | Mirror polished | Round head, with small bevel |
| KNIP7742-115 | Mirror polished | Pointed head, without bevel |
| KNIP7772-115 | Mirror polished | Pointed mini head, with small bevel |
| KNIP7622-125 | Polished | Round head, without bevel |
| KNIP7742-130 | Mirror polished | Pointed head, without bevel |
|
||
| Norms |
| DIN ISO 9654 KNIP7622-125: DIN ISO 5749 |
