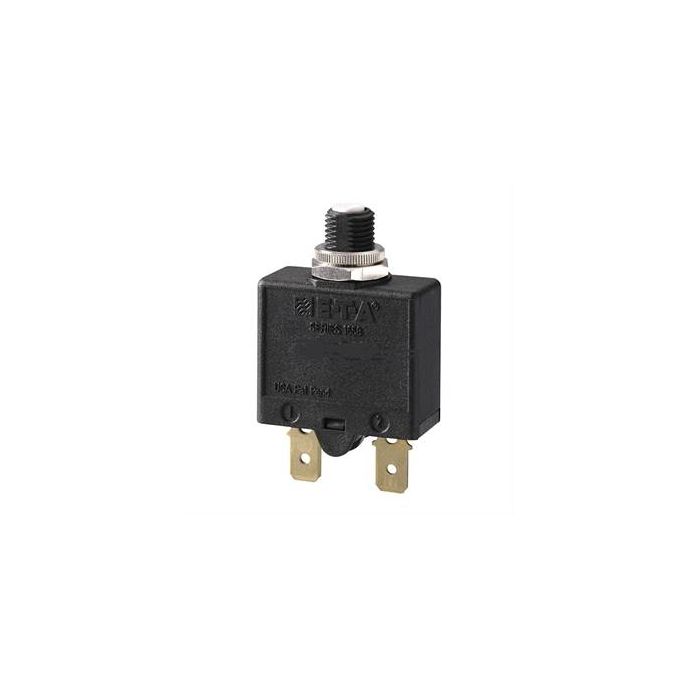

ZEKERING AUTOMAAT 16A 240VAC/28VDC
€ 9,95
€ 8,22
Artikelnummer
T1658/16
- ArtikelnummerT1658/16
- MerkE-T-A
- Aantal 5+ € 8,94 € 7,39
Features
| • Single-pole thermal reset circuit breaker • In small construction with threaded housing attachment • Reliable switching behavior due to snap-shank contact • When the circuit breaker trips, a white push-button will be visible. • Manual reset • Easy screw mounting 3/8–27UNS–2A, 6mm lenght • Complies with the device circuit breaker standard EN 60934 (IEC 600934): R-type, TO • Flat plugs DIN 46244-A6,3-0,8 |
 |
| Use |
| Battery chargers, consumer goods, power supplies, motors, etc. |
|
| Technical Specifications |
|
|
| Rated Voltage: | 240V AC / 28V DC |
| Rated Current1): | 5...30A |
| Conditional Short Circuit CurrentICN | |
| 5...7A: | 180A |
| 8...30A: | 200A |
| Shock Resistance: | 30g (11ms) |
| Insulation Resistance, Min. (500V DC): | 100MOhm |
| Ambient Temperature: | -20...+60°C |
| 5A: | -20...+40°C |
| Protection Class (IEC 60 529) | |
| Operating Range: | IP40 |
| Connection Area: | IP00 |
| Weight: | 16g |
