AUTOPLUG CHASSIS OPBOUW MET AFDEKKAP

Black plastic housing.
Tight sealing flexible UV stabilised flap cover.
All non-corrosive metal parts - nickel plated brass.
Inside rim keeps accessory plugs securely connected.
Push-on blade terminals - disconnects.
Permanent polarity (+ -) marks.
Weight: 43 g.

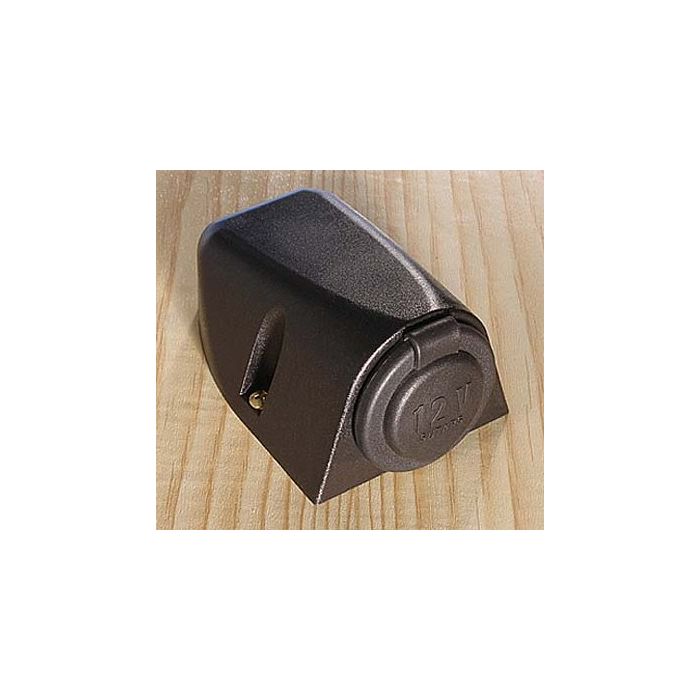

This surface version is the Sutars compact socket in a plastic shroud. There are threads in the entrance hole on the front so no need for a retainer nut. Well, suitably cut the front will do as retainer nut, should you later decide to recess the socket.
The Plant-on Socket is the one to use when recessing is difficult. It costs a little more than a recessable Socket, but since it takes only two small screw holes to fit it and no tools for a 1 1/8 inch hole, it is very often a cheaper alternative after all.

The cap can be adjusted in all directions and so the text can be read even when the socket is installed sideways on a wall.

The centres of the screw holes are 44 mm apart. Screws are not included as the kind to use depends on the properties of the panel.
