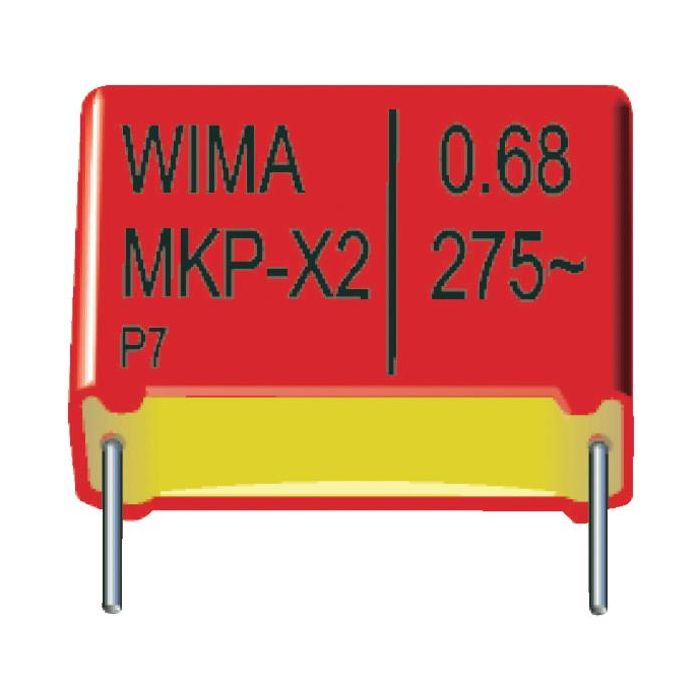

POLYPROPYLEEN 680NF 305VAC RM22,5
€ 1,75
€ 1,45
Artikelnummer
X2N680
- ArtikelnummerX2N680
- MerkWIMA
- Aantal 25+ € 1,57 € 1,30
Features
Reliable self-healing
High degree of interference suppression due to good attenuation and low ESR
Dielectric: polypropylene (PP) film
Capacitor electrodes: Vacuum-deposited plastic film
Encapsulation: solvent-resistant, flame-retardent plastic case with epoxy resin seal, UL94V-0
Terminations: tinned wire
Applications
Class X2 RFI applications to meet EMC regulations
Capacitors connected to the mains between phase and neutral or phase conductors
Installation category II in accordance with IEC 60664, pulse peak voltage max. 2.5kV
Technical Specifications
Rated Voltages (UN): 275V AC
Capacitance Tolerances: ±10%
Operating Temperature Range: -55...+105°C
Climatic Test Category IEC: 55/105/56/B
Insulation Resistance, Min.
to incl. 330nF: 15000MOhm
from 330nF: 5000s
Failure Rate (40°C, 0,5 x UN): 2,0 fit1)
Pulse Rise Time, Max. (100V/µs) 425Vss
Reliable self-healing
High degree of interference suppression due to good attenuation and low ESR
Dielectric: polypropylene (PP) film
Capacitor electrodes: Vacuum-deposited plastic film
Encapsulation: solvent-resistant, flame-retardent plastic case with epoxy resin seal, UL94V-0
Terminations: tinned wire
Applications
Class X2 RFI applications to meet EMC regulations
Capacitors connected to the mains between phase and neutral or phase conductors
Installation category II in accordance with IEC 60664, pulse peak voltage max. 2.5kV
Technical Specifications
Rated Voltages (UN): 275V AC
Capacitance Tolerances: ±10%
Operating Temperature Range: -55...+105°C
Climatic Test Category IEC: 55/105/56/B
Insulation Resistance, Min.
to incl. 330nF: 15000MOhm
from 330nF: 5000s
Failure Rate (40°C, 0,5 x UN): 2,0 fit1)
Pulse Rise Time, Max. (100V/µs) 425Vss
