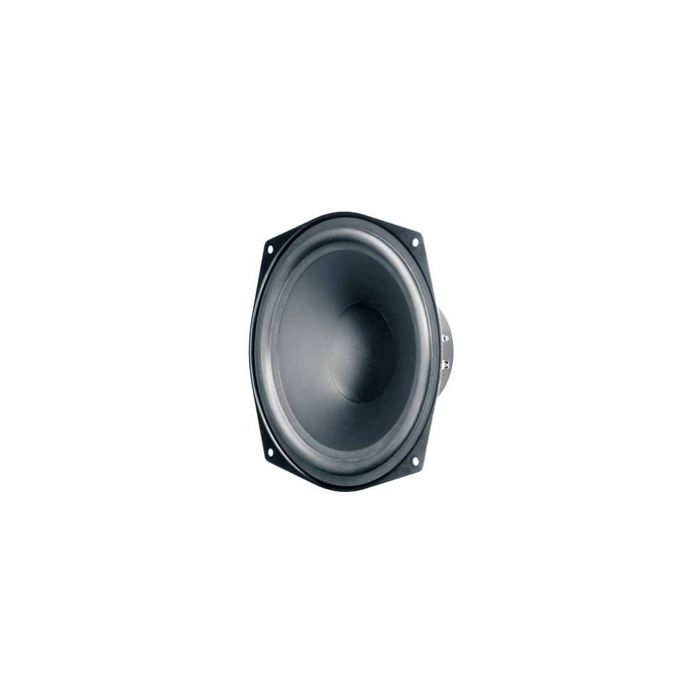

WOOFER 8 OHM 80/120W 200MM 8'' 45-6000HZ 88DB

Rated power 80 Watt
Maximum power 120 Watt
Nominal impedance 8 Ohm
Frequency response (-10 dB) fu - 7000 Hz
(fu: Lower cut-off frequency depending on cabinet) .
Mean sound pressure level 88 dB (1W/1m)
Maximum cone displacement 12 mm
Resonance frequency fs 45 Hz
Magnetic induction 0,85 Tesla
Magnetic flux 400 µ Weber
Height of front pole-plate 5 mm
Voice coil diameter 3 cm
Height of winding 1,1 cm
Cutout diameter 18,6 cm
Net weight 1,3 kg
D.C. resistance Rdc 6,3 Ohm
Mechanical Q factor Qms 4,26
Electrical Q factor Qes 1,27
Total Q factor Qts 0,98
Equivalent volume Vas 48 l
Effective piston area Sd 240 cm2
Dynamically moved mass Mms 21 g
Force factor Bxl 5,5 T · m
Inductance of the voice coil L 1 mH
