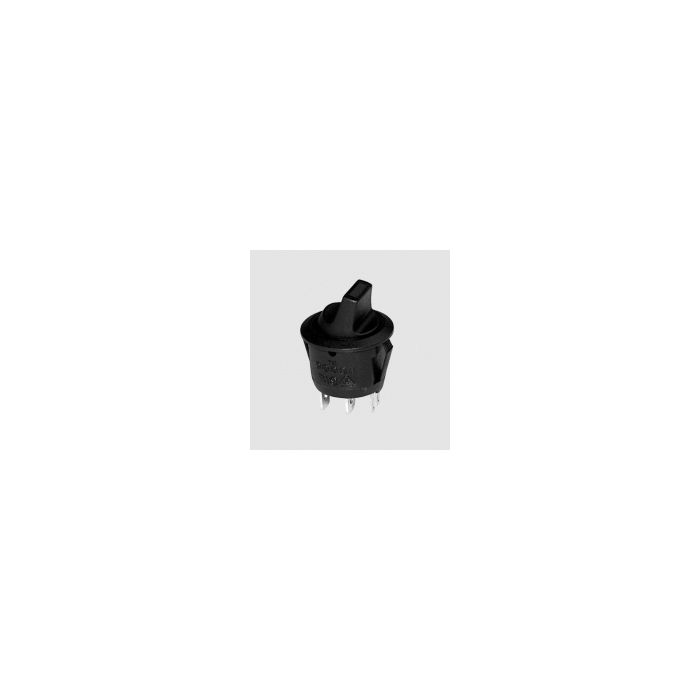

TUIMEL 1 X MAAK ZWART ROND MET GROENE LED 6A/250VAC
€ 3,50
€ 2,89
Artikelnummer
WP12KGN
- ArtikelnummerWP12KGN
- MerkBrand
- Aantal 10+ € 2,96 € 2,45
Technical Specifications
Operating Voltage, Max.: 250V AC
Switching Current, Max.: 6A/250V AC 10A/24V AC
Switching Current at Inductive Load, Max.: 3A
Ambient Temperature, Max.: 85°C
Insulation Resistance (500V DC): 100MW
LED Voltage Range
Red/Green: 2,0...2,2V DC
Blue: 3,6...4,0V DC
Materials
Shell and Rocker: Nylon 6.6/UL94-V2
Illuminated Rocker: Polycarbonate
Terminals: Silver-plated
Connector: 4,8x0,8mm
Operating Voltage, Max.: 250V AC
Switching Current, Max.: 6A/250V AC 10A/24V AC
Switching Current at Inductive Load, Max.: 3A
Ambient Temperature, Max.: 85°C
Insulation Resistance (500V DC): 100MW
LED Voltage Range
Red/Green: 2,0...2,2V DC
Blue: 3,6...4,0V DC
Materials
Shell and Rocker: Nylon 6.6/UL94-V2
Illuminated Rocker: Polycarbonate
Terminals: Silver-plated
Connector: 4,8x0,8mm
