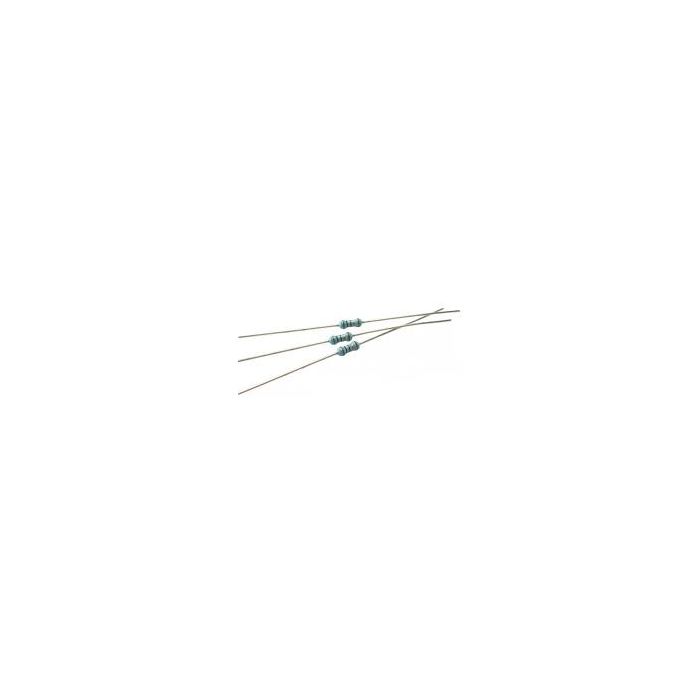

METAALFILM 0.25W 1% 270E
€ 0,16
€ 0,13
Artikelnummer
WM06127
- ArtikelnummerWM06127
- MerkBrand
Features
Excellent stability
Weather resistant glazing
Technical Specifications
Resistance Tolerance: ±1%
Power Rating (70°C): 0,25W
Power Rating (125°C): 0,1W
Working Voltage (AC/DC Max., 70°C): 250V
Hold-Off Voltage, Short Time (70°C): 500V
Insulation Resistance: ³1013W
Failure Rate: <10-8/h
Temperature Coefficient: TK50
Temperature Range: -65...+155°C
Excellent stability
Weather resistant glazing
Technical Specifications
Resistance Tolerance: ±1%
Power Rating (70°C): 0,25W
Power Rating (125°C): 0,1W
Working Voltage (AC/DC Max., 70°C): 250V
Hold-Off Voltage, Short Time (70°C): 500V
Insulation Resistance: ³1013W
Failure Rate: <10-8/h
Temperature Coefficient: TK50
Temperature Range: -65...+155°C
