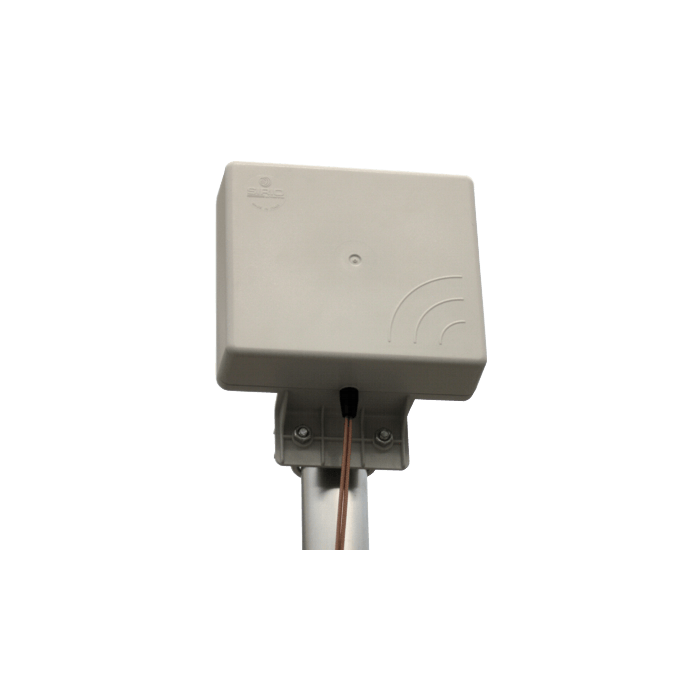

WLAN WIFI ANTENNE 790-960/1700-2700MHZ 8DBI RICHT ANTENNE
€ 84,95
€ 70,21
Artikelnummer
SR07
- ArtikelnummerSR07
- MerkSIRIO
- Aantal 3+ € 80,69 € 66,69
Product Number:
| P/N: 2111403.00 | SMP 4G LTE MiMo |
Electrical Data:
| Type: | Mini Panel |
| Radiation: | Directional |
| Polarization: | Linear vertical |
| Frequency range: | 790-960 MHz & 1700-2700 MHz No tuning required |
| Systems: | GSM-R, GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, 3G-UMTS, 4G-LTE, ISM/SIGFOX/LoRa 868MHz, WiFi-2.4GHz |
| Gain: | 5 dBi @ 790-960 MHz 8 dBi @ 1.71-2.7 GHz |
| Max Power: | 20 Watts @ 790-960 MHz 8 Watts @ 1.71-2.7 GHz |
| Cable lenght / type: | 30 cm (11.81 in) / RG316 PTFE |
| Connector: | 2 x SMA-male |
Mechanical Data:
| Materials: | Galvanized steel, Thermoplastic UV stabilized, PCB |
| Dimensions (approx): | 153 x 134 x 46 mm / 0.5 x 0.44 x 0.15 ft |
| Weight (approx): | 400 gr / 0.88 lb |
| Mounting type: | On-Mast, On-Wall |
