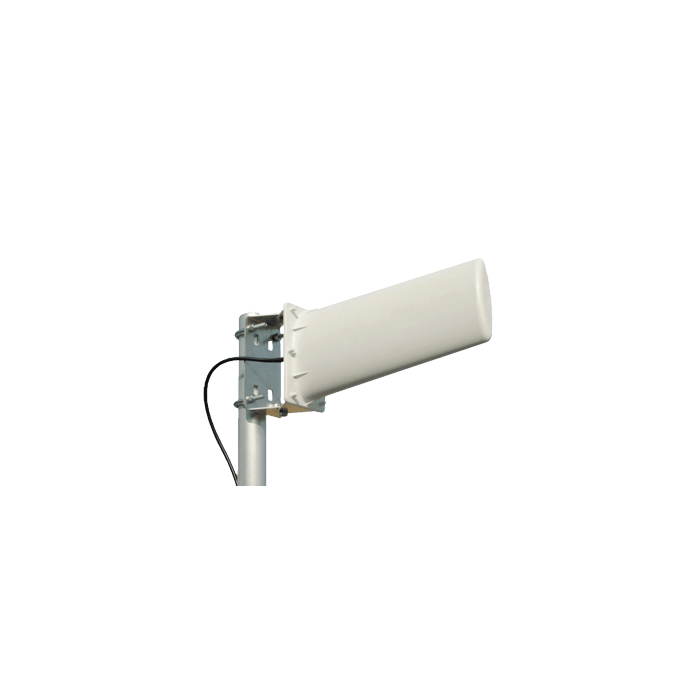

WLAN WIFI ANTENNE 1700-2500MHZ 11DBI RICHT ANTENNE

Features:
• Base station antenna, Directional
• Wide-band, High-gain
• DC-ground protection
• High quality brass radiator protected by ABS UV stabilized radome
• For DCS,PCS,DECT,UMTS and WLAN systems
P/N 2130103.00 SLP-1.7÷2.5-11

Electrical data
• Type: Log periodic dipole array
• Frequency range: 1700-2500 MHz for DCS,PCS,DECT,UMTS and WLAN systems
• Impedance: 50Ω unbalanced
• Radiation (H-plane): beamwidth at -3 dB = 58° frequency independent
• Radiation (E-plane): beamwidth at -3 dB = 46° frequency independent
• Radiation angle: 0°
• Front to back ratio: ≥ 24 dB
• Polarization: vertical
• Gain: 11.1 dBi
• S.W.R. in bandwidth: ≤ 2:1
• Max. power: 50 Watts (CW) at 50° C
• Feed system / position: direct DC-ground / vertex
• Connector: SMA-female bulchead

Mechanical data
• Materials: Aluminium, Brass, Stainless Steel
• Radome material: white ABS UV stabilized
• Wind load / resistance: 61 N at 150 Km/h / 180 Km/h
• Wind surface: 0.04 m²
• Dimensions (approx.): 345 x 135 x 73 mm
• Turning radius: 310 mm
• Weight (approx.): 400 gr
• Operating temperature: -40° C to +80° C
• Mounting mast:
clamp: Ø 25-70 mm
mast: Ø 25-42 mm with U-bolt (optional)
wall with mounting screws (not included)
