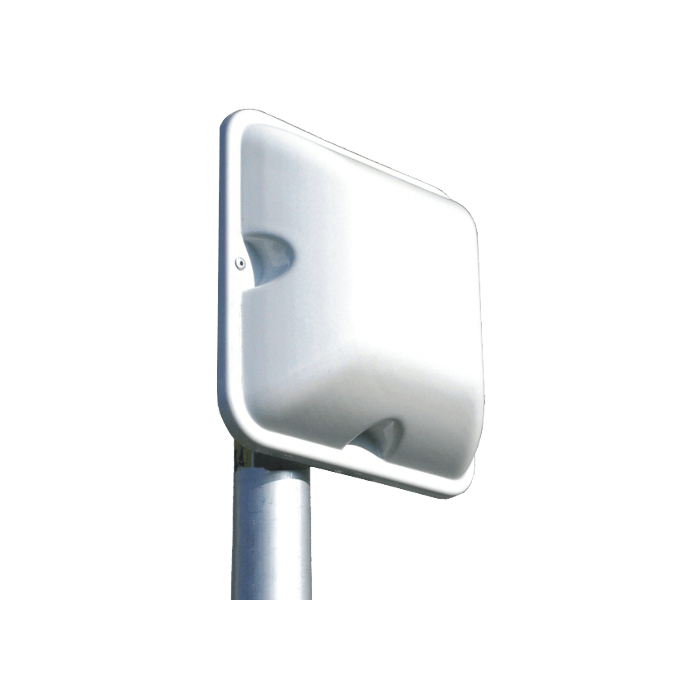

WLAN WIFI ANTENNE 1700-2500MHZ 10DBI RICHT ANTENNE

Features:
• Base station antenna, Directional
• Wide-band, High-gain
• DC-ground protection
• High quality PCB radiator protected by ABS UV stabilized radome
• For DCS,PCS,DECT,UMTS and WLAN systems
P/N 2110103.00 SPB-1.7÷2.5-10

Electrical data
• Type: Planar reflector
• Frequency range: 1700-2500 MHz for PCS,PCS,DECT,UMTS and WLAN systems
• Impedance: 50Ω unbalanced
• Radiation (H-plane): beamwidth at -3 dB = 54° at 2045 MHz
• Radiation (E-plane): beamwidth at -3 dB = 53° at 2045 MHz
• Radiation angle: 0°
• Front to back ratio: ≥ 20 dB
• Polarization: vertical
• Gain: 10 dBi
• S.W.R. in bandwidth:
≤ 1.5:1 from 1.7 to 2.17 GHz
≤ 2.0:1 from 2.17 to 2.5 GHz
• Max. power: 20 Watts (CW) at 50° C
• Feed system / position: direct DC-ground / center
• Cable lenght / type: 30 cm / RG 58 C/U
• Connector: SMA-male

Mechanical data
• Materials: PCB, Aluminium, ABS
• Radome material: white ABS UV stabilized
• Wind load / resistance: 60 N at 150 Km/h / 180 Km/h
• Wind surface: 0.03 m²
• Dimensions (approx.): 170 x 170 x 50 mm without bracket
• Weight (approx.): 650 gr
• Operating temperature: -40° C to +80° C
• Mounting mast:
mast: Ø 25-42 mm with U-bolt
clamp: Ø 25-70 mm (optional)
wall: with mounting screws (not oncluded)
