WLAN WIFI ANTENNE 1500-6000MHZ 17DBI RICHT ANTENNE

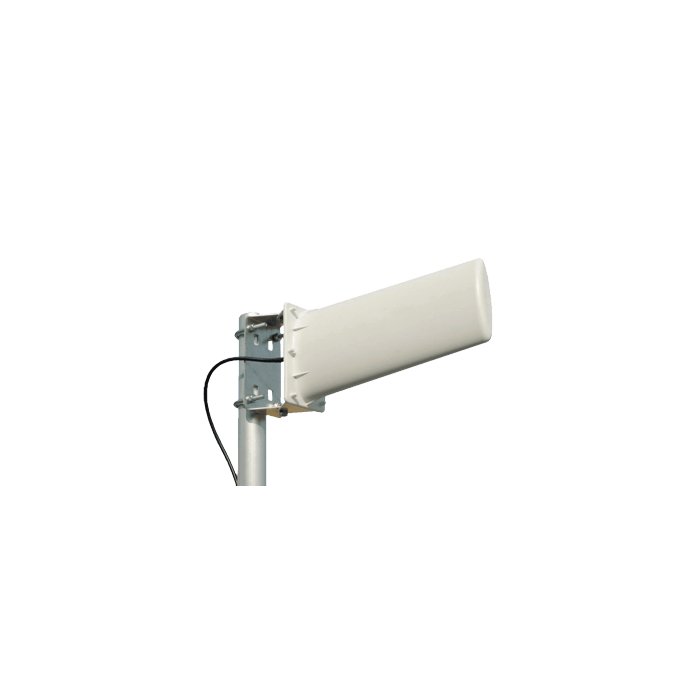

High-gain and extremely wide band directional base station antenna suitable for all sistem between 1.5 and 6 GHz ( i.e.: GSM 1.8 GHz, DCS 1.9GHz, DECT, UMTS, WLAN 2.4GHz , WLAN 5GHz, WiMAX 2.5GHz and WiMAX 3.5GHz systems). The radiant element is made of Teflonâ PCB to guarantee high power and low losses. The radiator is protected by a UV-stabilized radome to get the best performance for long periods of time. It’s supplied with an adjustable aluminium bracket that allows the best installation flexibility.

Electrical Data:

• Type : Wide Band PCB Antenna
• Frequency Range @ SWR £1.8: 1.5 - 6 GHz
• Impedance : 50 W
• Polarization : Linear Vertical
• Max Gain : 17 dBi (see diagram)
  3 dB Beamwidth Vertical : See diagrams
  3 dB Beamwidth Horizontal : See diagrams
• Front to back ratio : ³ 20 dB
• Radiation angle deg. : 0°
• Max Power @ 30° C : 15 Watts (CW) from 1.5 to 4GHz
  10 Watts (CW) from 4 to 6 GHz
• Grounding Protection : All metal parts are DC-grounded, the inner conductor
  is coupled capacitively
• Connector type : SMA-female

  Mechanical Data:


• Housing Materials : Aluminium, Stainless Steel, white ABS UV stabilized, PCB
• Radome Material : White ABS UV Stabilized
• Wind Load / Resistance : 61N @ 150 Km/h / 180 Km/h
• 2 Wind Surface : 0.04 m
• Dimensions (approx.) : 345 x 135 x 73 mm
• Turning radius (approx.) : 310 mm
• Weight (approx.) : 450 gr
• Operating Temperature : -40° C to 80° C
• Mounting Mast : Mast Æ 25-42 mm whit U-bolt
• Clamp Æ 25-70 mm (optional)
• Wall mounting screws (not included)
