WAND INBOUWSPEAKER 6W/100V MET REGELAAR WIT KUNSTSTOF BEHUIZING

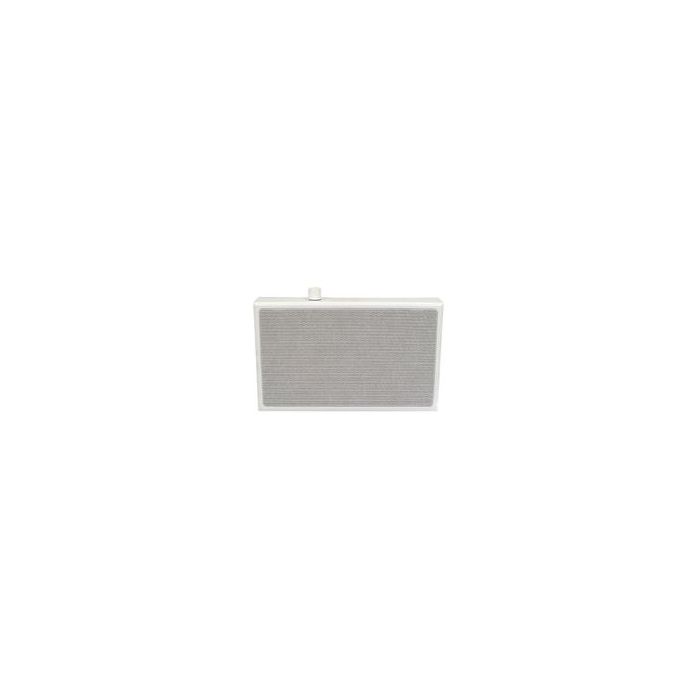

Wall-mounted speaker with a volume control-knob, white plastic cabinet and metal grille. Fitted with a full range driver. Good music reproduction and clear speech reproduction properties. Connection to 100 volt network and level trimming by means of spring terminal.

Also available:
- WL 13 P 100 V (without volume cotrol)
- WL 13 PR P 100 V (with volume control and priority relais)

Typical applications:
- Wall-mounted speakers in 100 volt networks in public areas, schools, hotels, surgeries etc. for announcements and backgrounds.

Attributes:
- level control
- 100V-Transformer
- Plastic: ABS V0 (UL 94: V-0)

Transformer matching 6; 3; 1,5 W
Sound pressure level 94 dB (1 W/1 m)
@ 5312 Hz
Sensitivity 90 dB (1 W/1 m;
700–7000 Hz)
Frequency response 90–16000 Hz
Mean sound pressure level 88 dB (1 W/1 m)
Max. sound pressure level 96 dB (6 W/1 m)
Opening angle (-6 dB) 74°/4000 Hz hor.
67°/4000 Hz vert.
Net weight 1,15 kg
Temperature range 0 ... 70 °C
