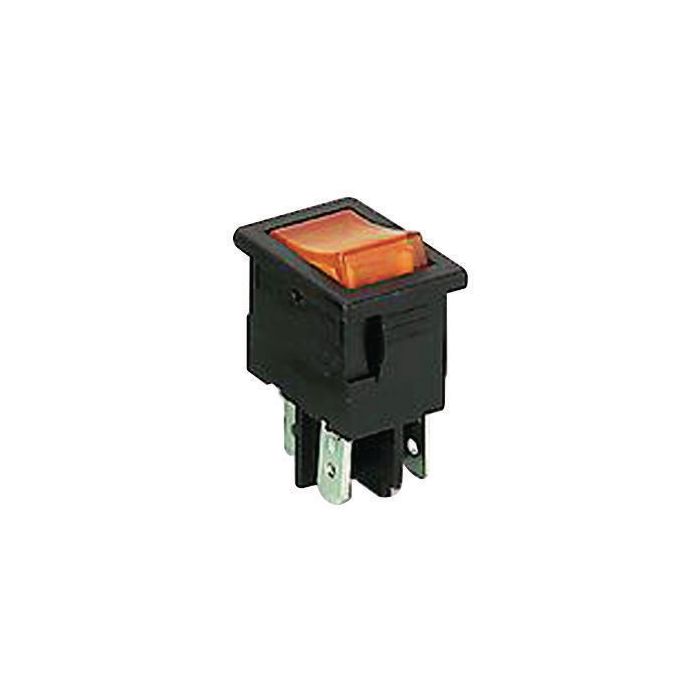

WIP 2 X MAAK 10A/250V MET ORANJE LAMPJE
€ 3,94
€ 3,26
Artikelnummer
SW2MK07O
- ArtikelnummerSW2MK07O
- MerkARCOLECTRIC
- Aantal 10+ € 3,55 € 2,93
Technical Specifications
 |
|
| Operating Voltage, Max.: | 250V AC |
| Switching Current, Max.: | 10A |
| Switching Current at Inductive Load, Max.: | 6A |
| Inrush Current (EN61058-1): | 85A |
| Ambient Temperature, Max. | |
| H8500_, H8550_: | 125°C |
| H8553_: | 100°C |
| Insulation Resistance: | >20MOhm |
| Contact Resistance | |
| (New State, 12V DC/1A): | <100mOhm |
| Contact Gap: | 3mm |
| Soldering Conditions (Hand Soldering): | 350°C/6s |
| Materials | |
| Shell and Rocker: | Nylon 6.6 |
| Illuminated Rocker: | Polycarbonate |
| Current-carrying Part: | Cu Alloy |
| Contacts: | Silver-plated |
| Flammability Class: | UL94V2 |
