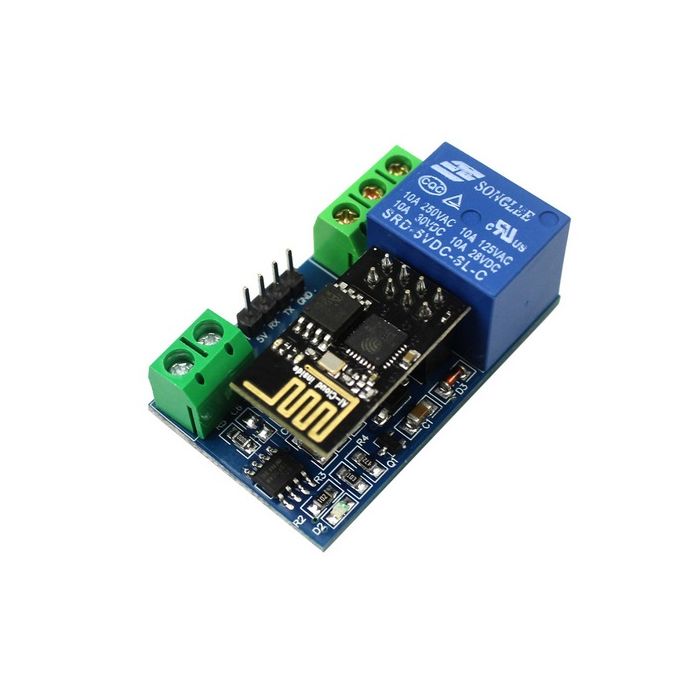

WIFI RELAIS MODULE 5VDC ESP8266
€ 9,95
€ 8,22
Artikelnummer
VMMWIFI
- ArtikelnummerVMMWIFI
- MerkBrand
- Aantal 5+ € 9,44 € 7,80
- 1. Onboard ESP8266 WIFI module, AP mode can be connected at the same time 5 client
- 2. The module has two ways to work ::
- (1) mobile phone directly mounted on the WIFI module;
- (2) mobile phone and WIFI module also carried on the router.
- 3. Transmission distance:
- (1) open environment, the mobile phone mounted on the WIFI module when the maximum transmission distance of 400m;
- (2) when the WiFI module and mobile phone at the same time carried on the router when the transmission distance according to the router's signal
- Weakly;
- 4. Onboard 5V, 10A / 250V AC 10A / 30V DC relay, can be continuous pull 10 million times, short response time;
- Board size: 45 * 28mm
- Board function description:
- IN +, IN-: 5V power input;
- TX, RX, GND: Serial debug pin
