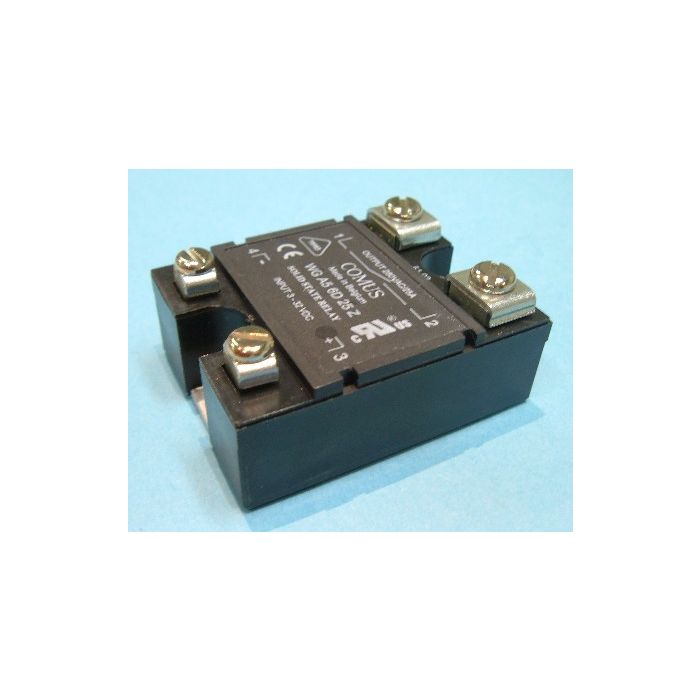

RELAIS SOLID STATE 24-280VAC 10A INPUT 3-32VDC

Input circuit
Control voltage range 3...32 VDC
Control current max. 10 mA
Turn-off voltage min. 1 VDC
Input resistance Constant current
Output circuit
Load voltage range 24...280 VAC
Peak-off-state voltage 600 Vdrm
Off-state leakage current 6 mA eff.
Load current range 0,1...10 A
Surge current 1 half wave 110 A peak
I²t for fusing 60 A²s
On-state voltage 1,85 Vpeak
Off-state (static) dv/dt 500 V/ìs
Snubber 47 ohm / 47 nF
General data
Turn-on time max. 11 ms 0,1 ms
Turn-off time max. 11 ms
Line frequency range 47...63 Hz
Isolation volt. between input/output 4.000 V
Isolation volt. between input-output/base 2.500 V
Isolation resistance 50 MW
Operation temperature -20...+80 °C
Recommended varistor SIOV-S20 K230
