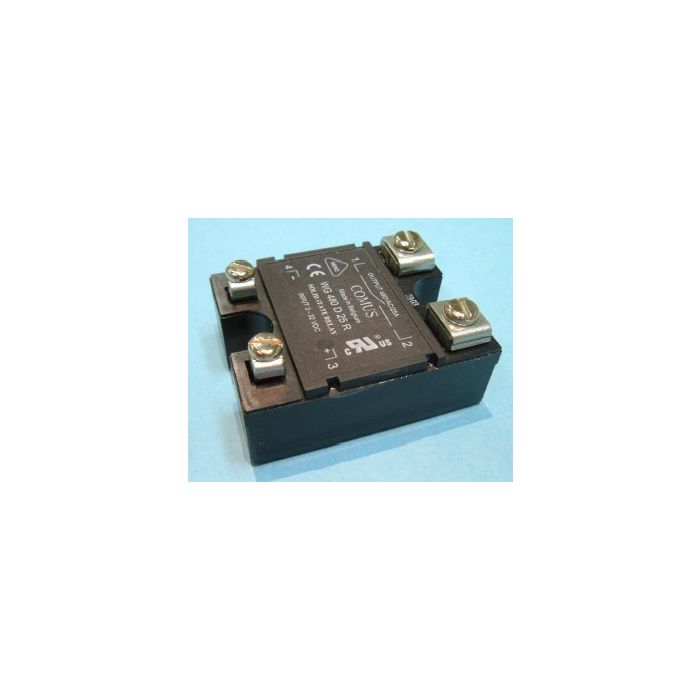

RELAIS SOLID STATE 24-480VAC 75A INPUT 3-32VDC (THYRISTOR UITGANG)

Input circuit
Control voltage range 3...32 VDC
Control current max. 22 mA
Turn-off voltage min. 1 VDC
Input resistance Constant current
Output circuit
Load voltage range 24...480 VAC
Peak-off-state voltage 1200 Vdrm
Off-state leakage current
Load current range 0,4...75A
Surge current 1 half wave 910 Apeak
I²t for fusing 4150 A²s
On-state voltage 1,6 Vpeak
Off-state (static) dv/dt 1000 V/ìs
Snubber 47 W / 22 nF
General data
Turn-on time max. 11 ms 0,1 ms
Turn-off time max. 11 ms
Line frequency range 47...63 Hz
Isolation volt. between input/output 4.000 V
Isolation volt. between input-output/base 2.500 V
Isolation resistance 50 MW
Operation temperature -20...+80 °C
Recommended varistor SIOV-S20 K230
10 mA eff.
Approvals cULus, VDE
