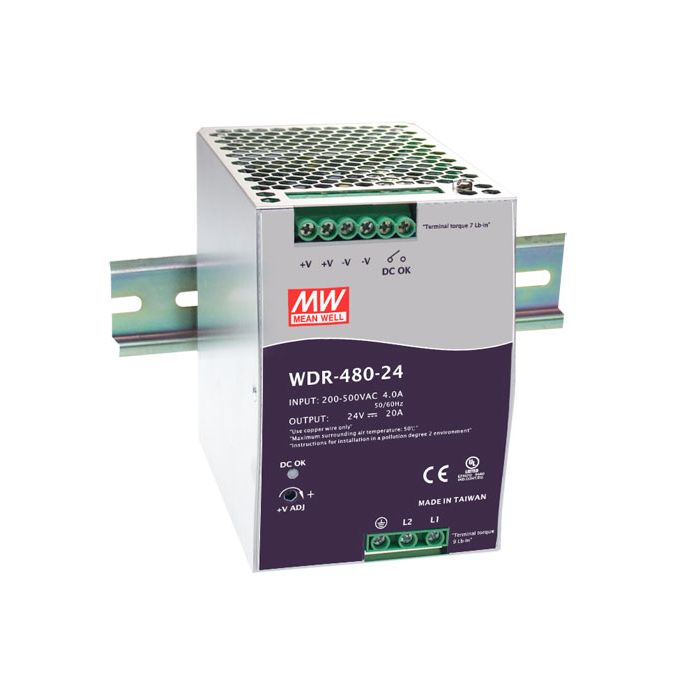

DIN-RAIL VOEDING 85.5MM 480W 24V/20A

Single and two phase wide input range 180 ~ 550VAC
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Built-in constant current limiting circuit
Can be installed on DIN rail TS-35/7.5 or 15
EN61000-6-2(EN50082-2) industrial immunity level
100% full load burn-in test
Built-in DC OK relay contact


Technical Specifications
Input Voltage: 180...550V AC (47...63Hz) 254...780V DC
Input Inrush Current, Max.: 50A

uitgangsspanning: 24V +/-1.0%
uitgangsstroom: 20A
max. vermogen: 480W
afmetingen: 85,5 x 125,2 x 113,5mm
gewicht: 1700g
werktemperatuur: -30°C ~ 70°C
