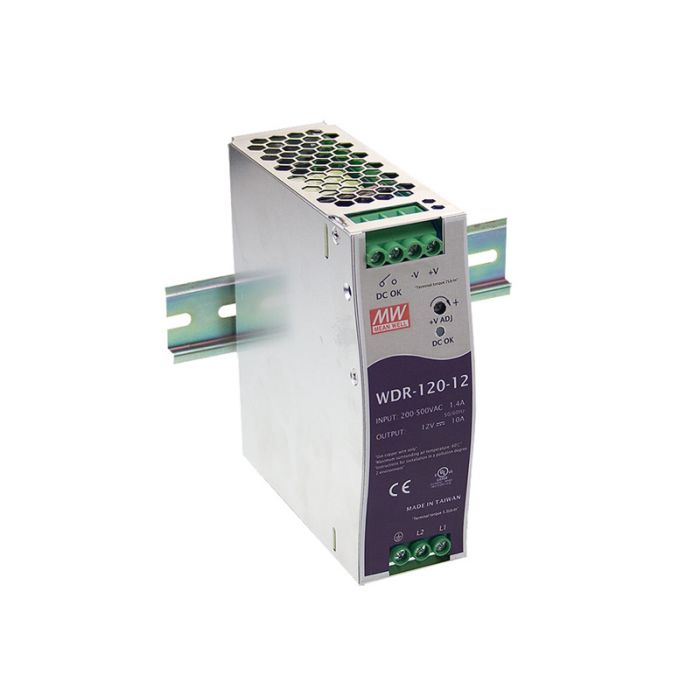

DIN-RAIL VOEDING 40MM 120W 12V/10A

Single and two phase wide input range 180 ~ 550VAC
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Built-in constant current limiting circuit
Can be installed on DIN rail TS-35/7.5 or 15
EN61000-6-2(EN50082-2) industrial immunity level
100% full load burn-in test
Built-in UL508(industrial control equipment)approved
DC OK relay contact


OUTPUT:
DC VOLTAGE 12V
RATED CURRENT 10A
CURRENT RANGE 0 ~ 10A
RATED POWER 120W
RIPPLE & NOISE (max.) 120mVp-p
OUTPUT VOLTAGE ADJ. RANGE 12 ~ 15V
VOLTAGE TOLERANCE +/1.5%

INPUT:
VOLTAGE RANGE 180 ~ 550VAC 254 ~ 780VDC
FREQUENCY RANGE 47 ~ 63Hz

40x125.2x113.5mm (W*H*D)
