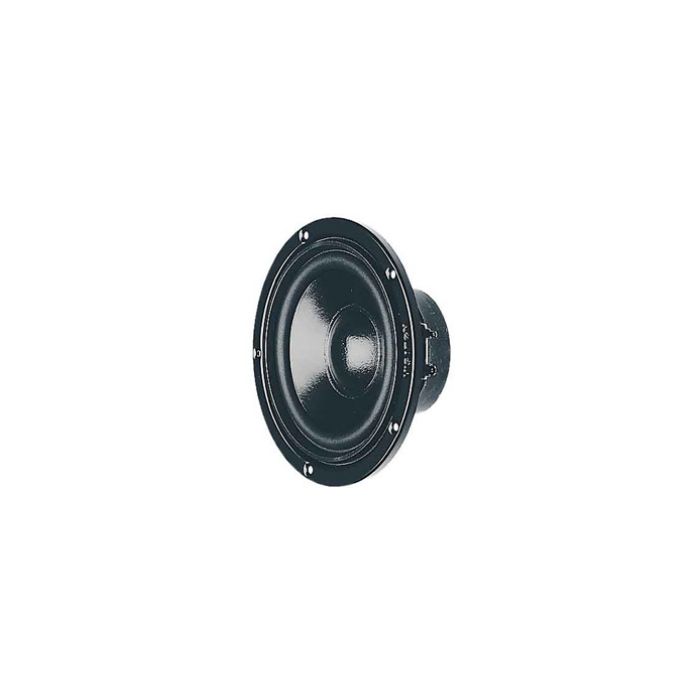

SPEAKER MID 8 OHM 50/80W 49-8000HZ 87DB 130MM

Nominal power handling 50 Watt
Peak power handling 80 Watt
Nominal impedance 8 Ohm
Frequency response fc - 8000 Hz
Mean sound pressure (nominal) 87 dB (1 W/1 m)
Maximum cone displacement 16 mm
Resonance frequency 49 Hz
Magnetic induction 0,9 Tesla
Magnetic flux 283 µ Weber
Height of front pole-plate 4 mm
Voice coil diameter 2,5 cm
Height of winding 0,85 cm
Cutout diameter 10,9 cm
Net weight 0,63 kg
D.C. resistance Rdc 6 Ohm
Mechanical Q factor Qms 2,12
Electrical Q factor Qes 0,54
Total Q factor Qts 0,43
Equivalent volume Vas 15 l
Effective piston area Sd 79 cm2
Dynamically moved mass mmd 6,2 g
Force factor Bxl 4,6 T · m
Inductance of the voice coil 0,61 mH
