VSA / VOORSCHAKELAPPARAAT ELECTRONISCH TT-R5 1X21W TC-DD 1X21-28W 80X41X18MM

<a href="{{media url="wysiwyg/PDF/BCCXXX.pdf"}}"><img src="{{media url="wysiwyg/PDF/PDF.jpg"}}"></a>
<br />

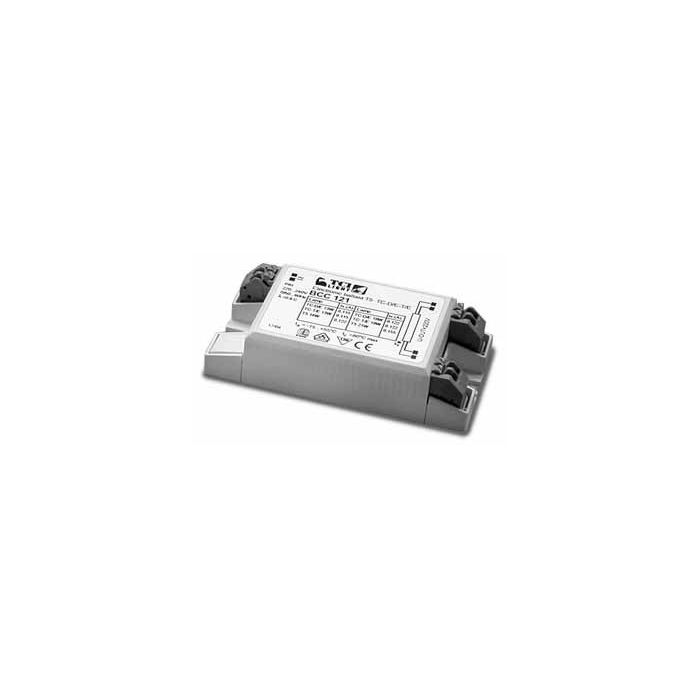

Compact size electronic ballast to be built-in.<br />• Suitable for connection to emergency equipment<br />in compliance with EN 60598-2-22.<br />• It can be used for lighting equipment in protection<br />class I and II.<br />• Sizes are compatible with mechanical ballast.<br />• Push-wire connections.<br />• Input and output terminal blocks on opposite sides.<br />• Ballast can be secured with slots for screws M4.<br />• Start with preheating to increase the life of<br />the lamp.<br />• Protections:<br />- disconnection of the lamp (restart with<br />preheating);<br />- lamp failure;<br />- end of lamp life.<br />• EMC compliance in 0 and 60 Hz operation relies<br />upon the luminaire manufacturer.<br /><br />Model: BCC 126<br />Code: 137949HTC<br />Afmeting: 80x41x18mm<br />Gewicht: 40gram<br /><br />Lamp: T5 <br />Fitting: G5<br />Vermogen: 1x24W<br /><br />Lamp: TC-L<br />Fitting: 2G11<br />Vermogen: 1x24W <br /><br />Lamp: TC-F<br />Fitting: 2G10<br />Vermogen: 1x24W<br /><br />Lamp: TC-D/E <br />Fitting: G24q-3<br />Vermogen: 1x26W<br /><br />Lamp: TC-T/E<br />Fitting: GX24q-3<br />Vermogen: 1x26W<br /><br />Lamp: T-R5<br />Fitting: 2GX13<br />Vermogen: 1x22W<br /><br /><br /><br />
