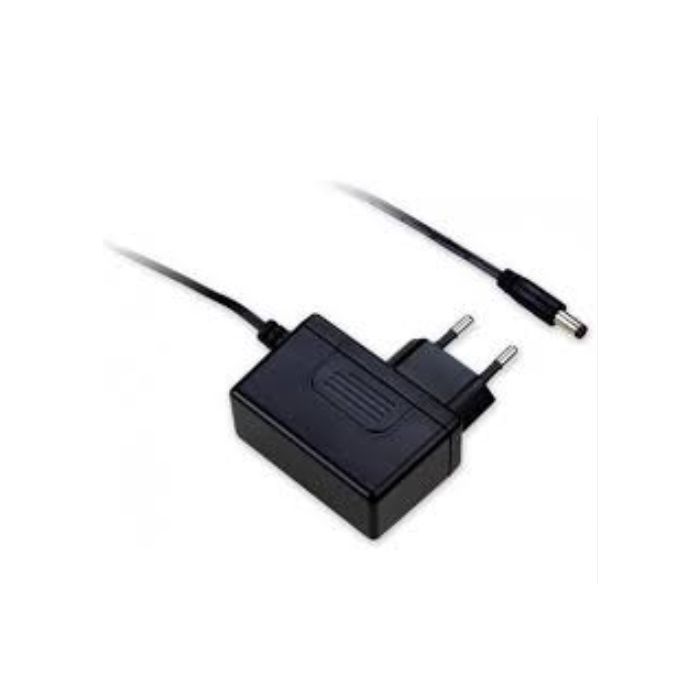

VOEDING 24V 2500MA GESCHAKELD
€ 32,95
€ 27,23
Artikelnummer
PSS2424
- ArtikelnummerPSS2424
- MerkMEANWELL
- Aantal 3+ € 29,65 € 24,50
| Features |
| • Plug-in switching power supply with europlug • Universal input • LPS • Protections: short circuit/over load/over voltage • Protection class II • Very low no load power consumption • Energy level: (EU) 2019/1782+ Level VI • Safety standards: EN62368-1; IEC62368-1 • 3 years manufacturer warranty |
 |
| Technical Specifications |
|
|
| Input Voltage: | 90...264V AC (47...63Hz) |
| 127...370V DC | |
| Input Inrush Current, Max.: | 50A |
| No Load Power Consumption, Max.: | <0,15W |
| Operating Temperature: | -20…+70°C |
| Cable Length | |
| 5...15V: | 100cm |
| 24V: | 150cm |
| Input Plug: | Eurostecker |
| Output Plug: | 5,5x2,1mm Hohlstecker |
| Average active efficiency | |
| for 5V: | 86,2% |
| for 12/15/24/48V: | 89,02% |
| Efficiency at low load, typ. (10%): | 84,59% |
| Weight: | 208g |
|
|
| Part Nr. | UA | IA | PA | ΔUA | URN | ƞ |
| [V] | [A] | [W] | [%] | [mVp-p] | [%] | |
| PSS2424 | 24 | 0…2,5 | 60 | 2 | 100 | 89 |
| UA = Output Voltage, IA = Output Current Range, PA = Output Power, ΔUA = Output Voltage Tolerance, URN = Ripple & Noise, ƞ = Efficiency | ||||||
