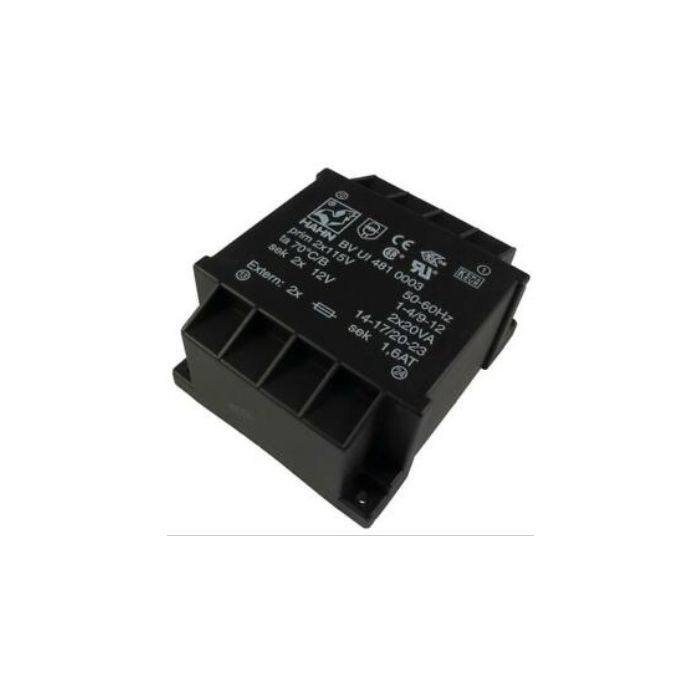

VLAKTRANSFORMATOR 40VA 2X12V 2X1.666A

Construction
• Vacuum encapsulated, bobbin with two chambers
• Leads through soldering pins to accommodate PCB mounting
• Designed to match VDE 0570 and EN61558 regulations
• Fully tested at primary and secondary voltage of 6000V, leakage and sparking distance in air is at least 10mm
• Types with double primary and secondary windings (2x115V) suitable for application in 115V as well as 230V power supplies

Size

Performance	Height h	Weight
	[mm]	[g]
40VA	38,7	780
60VA	47,9	1100
