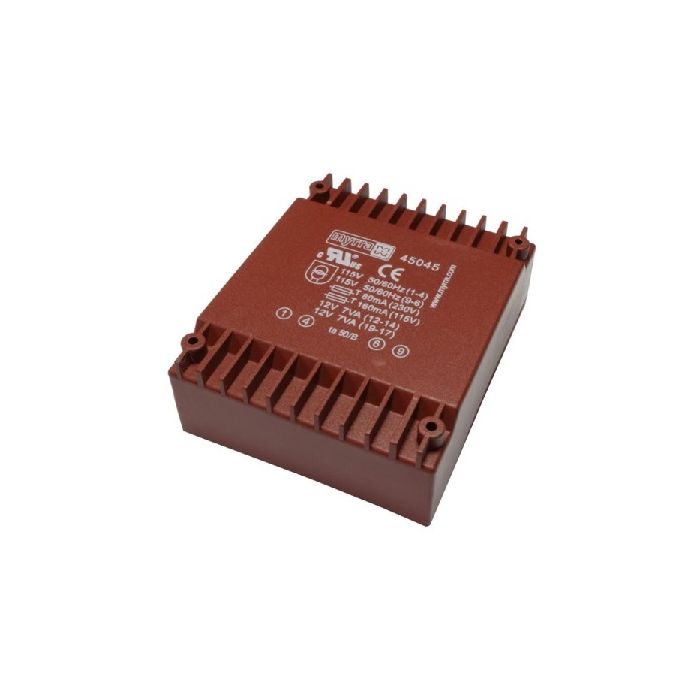

VLAKTRANSFORMATOR 18VA 2X12V 2X750MA
€ 11,95
€ 9,88
Artikelnummer
2120180MLP
- Artikelnummer2120180MLP
- MerkMYRRA
- Aantal 5+ € 10,76 € 8,89
Construction
• Vacuum encapsulated, bobbin with two chambers
• Leads through soldering pins to accommodate PCB mounting
• Designed to match EN61558, UL506 approved
• Types with double primary and secondary windings (2x115V) suitable for application in 115V as well as 230V power supplies
Size
| Performance | Height h | Weight | |
| [mm] | [g] | ||
| 10VA | 22 | 285 | |
| 14VA | 24 | 335 | |
| 18VA | 27 | 405 | |
| 24VA | 31 | 480 | |
| 30VA | 35 | 550 | |
 |
|||
| Required Protection |
| Performance | Primary Fuse | |
| 10VA | 125mA (115V) / 63mA (230V) | |
| 14VA | 160mA (115V) / 80mA (230V) | |
| 18VA | 200mA (115V) / 100mA (230V) | |
| 24VA | 250mA (115V) / 125mA (230V) | |
| 30VA | 315mA (115V) / 160mA (230V) |
