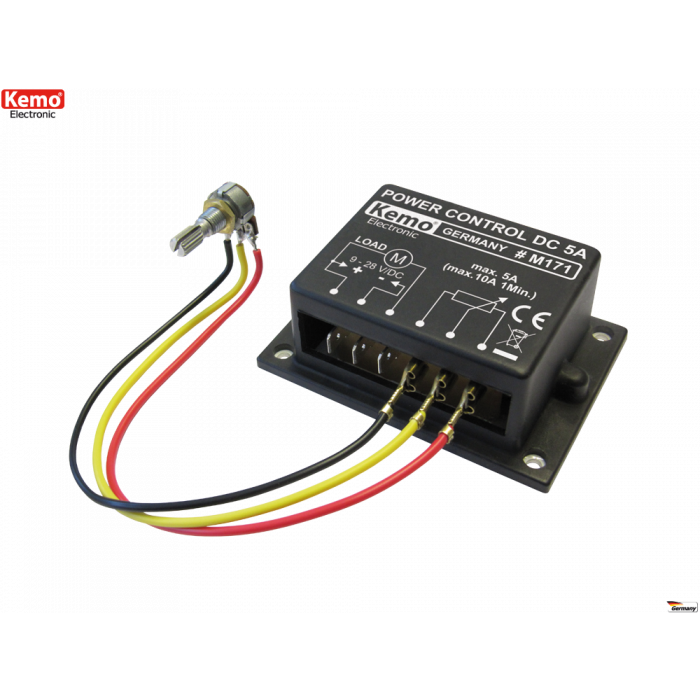

VERMOGENSREGELAAR PWM 9-28VDC MAX. 5A
€ 37,95
€ 31,36
Artikelnummer
M171
- ArtikelnummerM171
- MerkKEMO
- Aantal 5+ € 36,05 € 29,79
Power control to control direct current loads (motors, lamps, heatings, LEDs with protective resistors, etc.). Electric motors start well also at low revolution speeds because of the employed PWM (pulse width) modulation.
| Technical Data | |
| Operating voltage | 9 - 28 V/DC |
| Max. current carrying capacity | 5 A or 10 A (if the module is screwed on a cooling plate) |
| Control range | approx. < 5% to > 95% |
| Control mode | PWM pulse width modulation with a frequency between 10 - 20 kHz |
| Potentiometer | 4,7 k lin (enclosed) |
| Permissible loads | direct current motors, incandescent lamps, heatings, LEDs with protective resistors. Current consumption up to max. 10 A in each case. |
| Dimensions | approx. 87 x 60 x 33 mm (with mounting bottom) |
