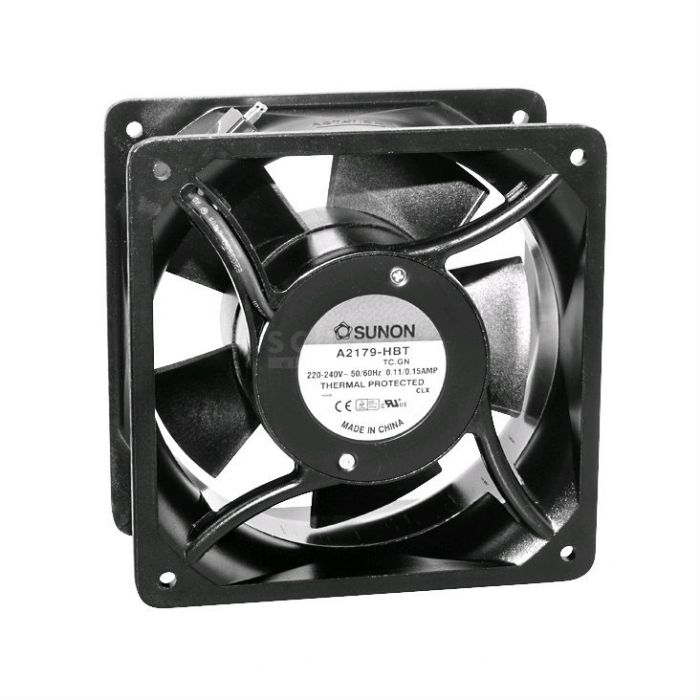

VENTILATOR 230V/AC KOGELLAGER 176X176X89MM 535,05M3/H 62DB 23W DRAAD AANSLUITING
€ 71,39
€ 59,00
Artikelnummer
F2317689
- ArtikelnummerF2317689
- MerkSUNON
- Aantal 5+ € 64,25 € 53,10
| Design |
 |
|
| Motor: | Alveolate Motor, Thermal Protected |
| Frame: | Aluminium Spray Cast |
| Impeller: | Filled Thermoplastic PBT (UL94V-0) |
| Connection Type: | Integrated Terminal Plug (2,8x0,3mm) |
|
|
| Technical Specifications |
|
|
| Rated Voltage: | 230V |
| Operating Voltage: | 150...250V |
| Dielectric Strength at 65% r. F.: | 1800V AC for 1s |
| Insulation Resistance at 500V DC: | >500MOhm |
| Storage Temperature: | -40...+70°C |
| Operating Temperature: | -10...+70°C |
| Reversible Temperature Protection: | 110°C/90°C |
|
|
| Part Nr. | Bearing | PAirflow | Noise | I | Pel | Speed |
| [m3/h] | [dBA] | [A] | [W] | [RPM] | ||
| A2179HBT-TC | Ball | 535,05 | 62 | 0,11 | 23 | 2800 |
| All Specs Valid for 230V, 50Hz; PAirflow = Airflow ±10%, Pel = Rated Power and Current Tolerance, ±10% | ||||||
